View larger
Images are for illustrative purposes only. Please refer to data sheet for details

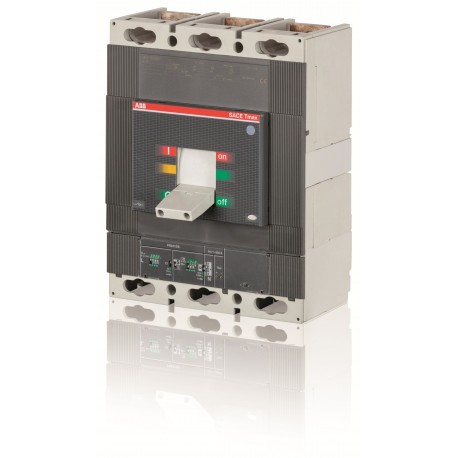

1SDA060319R1 ABB T6L630 PR221DS-LS/I In 630 3p FF 1000VAC
1SDA060319R1
060319
ABB
1 Pcs.
T6L630 PR221DS-LS/I In=630 3p FF 1000VAC
T6L630 PR221DS LS/I R630 3P F FC 1000V
Automation > Power circuit-breaker for trafo/generator/installation protection
T6
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | da5783ff-4611-42ef-b150-25bff876a76e Italy |
| Simplified SCIP | 51b8ffc4-4d60-4588-8f01-dad21f56d839 Poland |
| c000b7fd-3131-4951-82b7-b6dfd156ac34 Hungary | |
| d599eabb-24ab-48d2-917d-2f93844adc32 Germany | |
| 94b6a38b-92d7-43f8-b1c8-f6b8a8c630ca Netherlands | |
| 00fc337c-5682-48e0-a89a-0c67f41066d5 Denmark | |
| c0b12e8d-bce9-4cb8-b713-1699b885788b Germany | |
| e05fd30a-bb5a-462d-b274-7776629ed8a5 Czech Republic | |
| 41cb7154-561c-4954-9714-608de5b2d63b Portugal | |
| f7595281-86ce-4001-8d21-2b8a65160ef7 Germany | |
| 4b87d370-9984-4af1-b88d-fcc40d283fdc France | |
| 3b38da31-b9ad-469b-a116-b8cdb1a67cc3 Sweden | |
| 73040184-da06-4491-ad59-ab3194d9bbe4 Germany | |
| feea13f9-8a12-44cf-9c35-198a51043980 France | |
| 5ecb9e49-217f-4acc-816e-e3a4b42b1d56 Croatia | |
| 929a5487-44e2-469f-ac58-09d136fa1a1e Sweden | |
| ba8db94c-c724-4eea-ae26-5954a441dfd8 Poland | |
| 25970f85-68b0-4187-a76d-9aea0a7bda22 Estonia | |
| 86f7193e-9cb5-4ec7-9101-b40c3b7bc97b Greece | |
| 5fab7417-1029-45cf-9850-34d10e47ab8a Finland | |
| 9963267b-bfaa-4691-9d1e-e70bbdfad632 Germany | |
| 751d1b64-ea33-433a-90f6-73e08b93d39a Belgium | |
| 9ddaf5ee-d0c9-4535-a9d8-434900100cd6 Poland | |
| 0287d964-4aba-4176-a327-1ec715b49ae9 Norway | |
| 2735c2a0-5246-47ab-a260-9245e0b3ff53 Belgium | |
| 90841eb2-b011-4bdd-ba32-2a9326e28547 Spain | |
| be2a6ceb-23c3-489e-8041-6ae419cc83b8 Bulgaria | |
| 1358f25a-3559-47d0-804d-26cfbc16ff9b Hungary | |
| Environmental | |
| Environmental Information | 9AKK10103A1058 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644627874 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 9.5 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 11 kg |
| Package Level 1 EAN | 8015644627874 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T6 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 1000 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (1000 V AC) 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (1000 V AC) 12 kA |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC |
| Sub-type | T6 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210300D0201 |
| Declaration of Conformity - CE | 9AKK106713A5538 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDH000511R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 630 A |
| Rated voltage (EF003977) | 1000 V |
| Overload release current setting (EF002336) | 252.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 1000 A |
| Adjustment range undelayed short-circuit release (EF007131) | 1000 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
