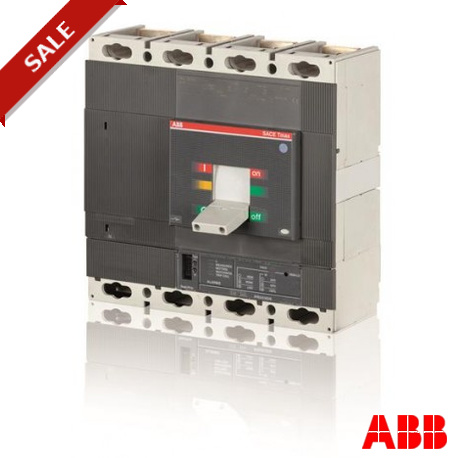

T6L800 1SDA060309R1 ABB T6L 800 PR223DS In 800 4p F F
T6L800
1SDA060309R1
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T6
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed to handle high electrical capacities, the Abb T6L800 automatic circuit breaker provides reliable fault interruption for demanding industrial grids. This high-current protective device is typically integrated into main switchgear systems to ensure safe distribution across heavy loads.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Electrical Durability: 5000 cycle 60 cycles per hour
- Mechanical Durability: 20000 cycle 120 cycles per hour
- Number of Poles: 4
- Power Loss: at Rated Operating Conditions per Pole 32 W
- Product Main Type: SACE Tmax T
- Product Name: Automatic Circuit Breaker
- Product Type: CB
- Rated Current (I n ): 800 A
- Rated Impulse Withstand Voltage (U imp ): 8 kV
- Rated Insulation Voltage (U i ): 1000 V
- Rated Operational Voltage: 690 V AC 750 V DC
- Rated Short-time Withstand Current (I cw ): for 1 s 10 A
- Rated Uninterrupted Current (I u ): 800 A
- Release Type: EL
- Standards: IEC 60947
- Sub-type: T6
More info
▲C.BREAKER TMAX T6L 800 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR223DS R 800
Ordering
- EAN:
- 8015644627775
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85362090
Dimensions
- Product Net Width:
- 280mm
- Product Net Height:
- 268mm
- Product Net Depth:
- 103.5mm
- Product Net Weight:
- 12kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 228 mm
- Package Level 1 Height:
- 228 mm
- Package Level 1 Length:
- 286 mm
- Package Level 1 Gross Weight:
- 14.5 kg
- Package Level 1 EAN:
- 8015644627775
Additional Information
- Electrical Durability:
- 5000 cycle
60 cycles per hour
- Mechanical Durability:
- 20000 cycle
120 cycles per hour
- Number of Poles:
- 4
- Power Loss:
- at Rated Operating Conditions per Pole 32 W
- Product Main Type:
- SACE Tmax T
- Product Name:
- Automatic Circuit Breaker
- Product Type:
- CB
- Rated Current (In):
- 800 A
- Rated Impulse Withstand Voltage (Uimp):
- 8 kV
- Rated Insulation Voltage (Ui):
- 1000 V
- Rated Operational Voltage:
- 690 V AC
750 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics):
- (220 V AC) 150 kA
(230 V AC) 150 kA
(380 V AC) 75 kA
(400 V AC) 75 kA
(415 V AC) 75 kA
(440 V AC) 60 kA
(500 V AC) 49 kA
(690 V AC) 22,5 kA
- Rated Short-time Withstand Current (Icw):
- for 1 s 10 A
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- (220 V AC) 20 kA
(230 V AC) 20 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 80 kA
(500 V AC) 65 kA
(690 V AC) 30 kA
(250 V DC) 2 Poles in Series 100 kA
(500 V DC) 2 Poles in Series 65 kA
(750 V DC) 3 Poles in Series 50 kA
- Rated Uninterrupted Current (Iu):
- 800 A
- Release Type:
- EL
- Standards:
- IEC 60947
- Sub-type:
- T6
- Suitable For:
- T6
- Suitable for Product Class:
- Moulded Case Circuit Breakers
- Terminal Connection Type:
- Fixed Circuit-Breakers
Front
- Test Voltage Max (Utest):
- 3500 V
- Version:
- F
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 1SDC210015D0201
- Declaration of Conformity - CE:
- 1SDL000165R0006
Classifications
- ETIM 4:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- ETIM 5:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- Object Classification Code:
- Q
