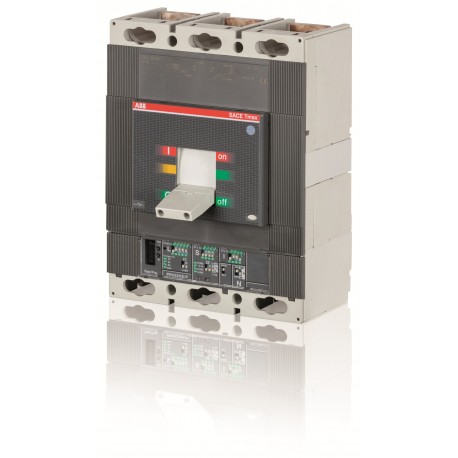

1SDA060301R1 ABB T6L 800 PR222DS/P-LSI In 800 3p F F
1SDA060301R1
060301
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T6
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An air circuit breaker, designated as the 1SDA060301R1 ABB T6L 800 PR222DS/P-LSI In 800 3p F F by Abb, is utilized to protect heavy industrial electrical systems from dangerous overloads and fault currents. These robust switching mechanisms are integrated into primary distribution boards to ensure dependable system protection and operational safety.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 152b42ca-4c75-43fc-b0dc-5f55fa70b13d China
- Simplified SCIP: 00b54991-5714-4943-92a6-250a23253b8c Netherlands
- Environmental Information: 9AKK10103A1058
- E-Number (Finland): 3655445
- EAN: 8015644626891
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 210 mm
- Product Net Height: 268 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 9.5 kg
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 152b42ca-4c75-43fc-b0dc-5f55fa70b13d China |
| Simplified SCIP | 00b54991-5714-4943-92a6-250a23253b8c Netherlands |
| da50043d-4b46-4c05-abbb-b8776b87cf07 Estonia | |
| 22bb73e1-b88e-4e95-b08c-a3ab03648855 Hungary | |
| 1fbf1543-c024-4406-99b7-6f52f5340f55 Poland | |
| 89cdc350-2884-45cb-8657-8f8a1ab75d46 Denmark | |
| b81f7738-b9f5-40fb-b099-a7600518fcea Finland | |
| 56a2172c-30b4-4bf4-8826-9d7fead445a2 Belgium | |
| 1e10b890-cc39-401f-8042-6acdfb4a4f56 Germany | |
| e43b4e82-3ac6-4dd1-801e-dad434e83cf2 Germany | |
| 1c2e2d1a-a4a2-48d5-80cd-da0336fd5106 Germany | |
| 1f83aa4b-aacb-4b41-ba74-3f5458527e2e Spain | |
| 0420d49f-145f-4916-a8aa-0c30e5632651 Sweden | |
| 1a101f5e-d420-4474-a78c-2a392555a6c5 France | |
| 99db1472-d0a4-45de-af8d-bcb9adda5e75 Belgium | |
| 352e33c5-e998-4c9a-aad3-f7cf8a4084a2 Poland | |
| 5e0e4753-3b61-4e9d-84b7-1cbc25eb145d Bulgaria | |
| 6ac58f99-02f8-4e1d-ab01-414500609612 Sweden | |
| d52a9bfe-bf99-46a6-af99-b710236193d2 Greece | |
| 0c28c9ac-2226-4501-a566-c5694376a9e3 Portugal | |
| e53f3cc0-062e-45c1-93a9-f182f74f0b1a Germany | |
| 3d32b97a-4b83-46fb-b3c8-b1ab94ece3ac France | |
| 6ea0ca31-4744-4e2f-9c1a-42b3875a2396 Hungary | |
| 1cc8aa0a-2a0f-473d-87e2-41413eb449d0 Croatia | |
| 9e5f788f-0b2d-40e1-af95-8fbc97776978 Germany | |
| 541f1e6a-5dde-4b15-9c7a-3999a9f9cf63 Poland | |
| 5eefb63b-0463-4303-a4f9-a13ac21a3ee0 Czech Republic | |
| 486c7f1b-342c-4cee-8d15-3e1ccb9f11c2 Norway | |
| Environmental | |
| Environmental Information | 9AKK10103A1058 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655445 |
| EAN | 8015644626891 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 210 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 9.5 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 11 kg |
| Package Level 1 EAN | 8015644626891 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T6 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 32 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 150 kA |
| (230 V AC) 150 kA | |
| (380 V AC) 75 kA | |
| (400 V AC) 75 kA | |
| (415 V AC) 75 kA | |
| (440 V AC) 60 kA | |
| (500 V AC) 49 kA | |
| (690 V AC) 22.5 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (380 V AC) 100 kA | |
| (400 V AC) 100 kA | |
| (415 V AC) 100 kA | |
| (440 V AC) 80 kA | |
| (500 V AC) 65 kA | |
| (690 V AC) 30 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | PR222DS/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC |
| Sub-type | T6 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | 9AKK106713A5538 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDH000511R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
