> ABB > Molded case "Isomax-Tmax" > T6 > 060262

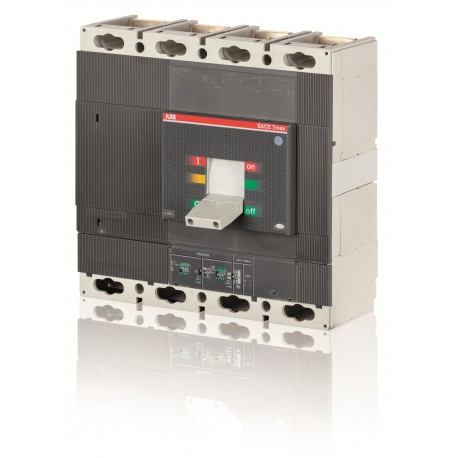

ABB 1SDA060262R1 1SDA060262R1 ABB T6L 630 PR221DS-LS/I In 630 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA060262R1 ABB T6L 630 PR221DS-LS/I In 630 4p F F

1SDA060262R1

060262

ABB

1 Pcs.

T6L 630 PR221DS-LS/I In=630 4p F F T6L630 PR221DS LS/I R630 4P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T6
