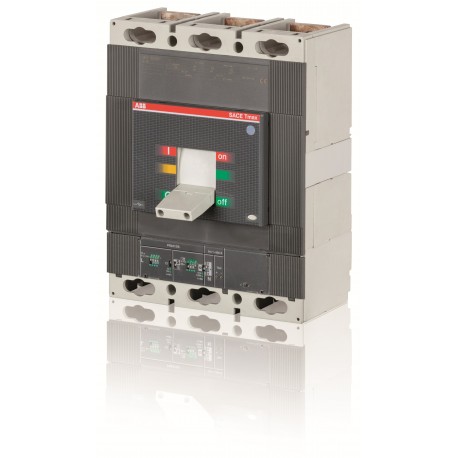

1SDA061694R1 ABB T6H800 PR221DS LS/I R800 3P F F UL
1SDA061694R1
061694
ABB
1 Pcs.
T6H800 PR221DS LS/I R800 3P F F UL
T6H 800 UL/CSA PR221DS-LS/I 800 3p F F
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A molded case circuit breaker designed for high-current environments, the 1SDA061694R1 ABB T6H800 PR221DS LS/I R800 3P F F UL from Abb protects electrical infrastructure from overloads and short circuits by automatically tripping during faults.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK10103A1058
- Order Code US and Canada: T6H800BW
- EAN: 8015644642334
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 210 mm
- Product Net Height: 268 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 9.5 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 321 mm
