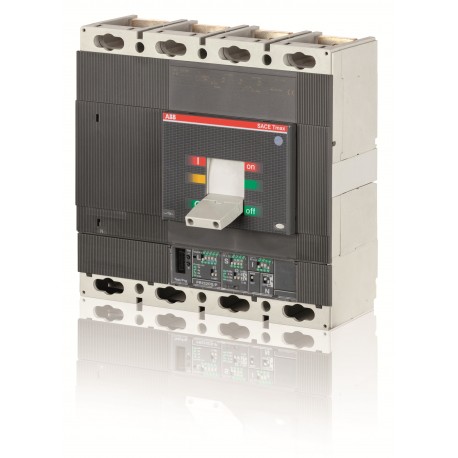

1SDA060296R1 ABB T6H 800 PR222DS/P-LSI In 800 4p F F
1SDA060296R1
060296
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T6
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Utilized extensively in commercial and industrial power distribution, this ABB T6H 800 PR222DS/P-LSI In 800 4p F F molded case circuit breaker delivers reliable circuit protection and system isolation. Such protective devices are installed upstream in electrical panels to interrupt fault currents and protect downstream wiring and machinery from damage.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 3f37721b-477c-4601-80d2-e27397203c18 China
- Simplified SCIP: 71998bdc-22e2-4d4f-880b-839b06ba8ed1 Germany
- Environmental Information: 9AKK10103A1058
- E-Number (Finland): 3655454
- EAN: 8015644627621
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 280 mm
- Product Net Height: 268 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 12 kg
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 3f37721b-477c-4601-80d2-e27397203c18 China |
| Simplified SCIP | 71998bdc-22e2-4d4f-880b-839b06ba8ed1 Germany |
| ff5e1fd1-893c-439e-ae6b-c867238059e9 France | |
| ef863034-f042-487c-8357-85f554c59c7a Belgium | |
| 085eaf95-6792-4792-8e6a-766b4c77f866 Hungary | |
| 7dd48423-66f1-461c-aaac-f6df1a8c9513 Germany | |
| 9104e1db-7d96-4a75-a269-076228d087c2 Poland | |
| 5bcba779-fe1c-4366-a73e-9c8077f9b1ea Croatia | |
| de9bc8d3-4ecb-4aff-b74d-401875f2024b Belgium | |
| 4d3f0c5f-b0e0-4a42-8314-666da4b4a83c Norway | |
| fdacec3c-545e-45c6-b6c1-95edc30ec397 Czech Republic | |
| 92267fed-6efb-4242-b55a-c1c69db507c2 Finland | |
| b3b3e96f-7a20-4bd2-afa8-c89f462784dd Denmark | |
| aad7977b-f2ae-4ec5-9144-44c9919c76bd Germany | |
| f969848c-55a8-4f19-9b0c-3af2b27ef112 Germany | |
| 1ea51726-8911-4707-be8a-ec1bb4dab61a Netherlands | |
| bb4d9db7-69b6-4d30-8f6c-0ff04dbf0bb3 Estonia | |
| b7dc1556-0d5c-4c97-b540-cc5d077bcc9c Poland | |
| f455a5a1-4fc3-4fcd-8d48-45f0b7ea06f0 Hungary | |
| 48b48b5d-9a1b-411e-9c9e-3852081e8b39 Greece | |
| e591b84b-7fce-4775-a443-09ccc5092140 France | |
| 0887bdeb-01a0-4717-ac6b-9c88d544e0fb Germany | |
| 6a7c1fcd-90b3-4ea1-be41-ada9d2d1ac99 Bulgaria | |
| 77ec9a78-58ed-4d76-b9cb-ca1e36a57287 Poland | |
| b06e2e73-221e-4ca5-bfa6-360d0d0aa613 Sweden | |
| a8a5c8f7-9833-4a89-8eb4-d29f98855ff3 Portugal | |
| 23d3f194-5797-4912-9fef-6c27f2d8ab93 Spain | |
| c9037e44-970c-412d-819a-4390c5ffb0f2 Sweden | |
| Environmental | |
| Environmental Information | 9AKK10103A1058 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655454 |
| EAN | 8015644627621 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 268 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 12 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 305 mm |
| Package Level 1 Height | 285 mm |
| Package Level 1 Depth / Length | 370 mm |
| Package Level 1 Gross Weight | 14 kg |
| Package Level 1 EAN | 8015644627621 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T6 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 32 W |
| Rated Current (In) | 800 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (400 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (690 V AC) 19 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (400 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 50 kA | |
| (500 V AC) 50 kA | |
| (690 V AC) 25 kA | |
| Rated Uninterrupted Current (Iu) | 800 A |
| Release | PR222DS/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | T6 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0201 |
| Declaration of Conformity - CE | 9AKK106713A5538 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDH000511R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
