> ABB > Molded case "Isomax-Tmax" > T6 > 060294

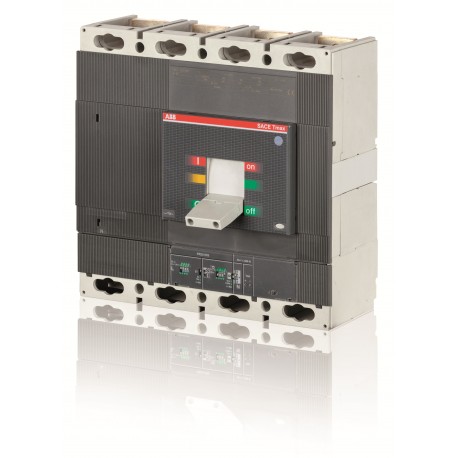

ABB 1SDA060294R1 1SDA060294R1 ABB T6H 800 PR221DS-LS/I In 800 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA060294R1 ABB T6H 800 PR221DS-LS/I In 800 4p F F

1SDA060294R1

060294

ABB

1 Pcs.

T6H 800 PR221DS-LS/I In=800 4p F F T6H800 PR221DS LS/I R800 4P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T6

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP61d5c19a-e5ac-4aa9-b64d-3df0489660e8 China
Simplified SCIP6ce7056e-9ec3-4fdd-a438-fa2cb821a05c Denmark
d5385091-d3cd-4ea2-a7ed-e5abfa5c2526 Sweden
b9e6934d-2cc8-4d4b-8fae-8d9b19841972 Germany
e37cb2e9-e618-438f-8dea-16e86d304a53 Estonia
9a40da81-4694-4e4c-8556-349d745b729a Netherlands
7858de72-aaaf-4841-81fa-e023aa90e7d7 Bulgaria
930bb475-6129-49e9-b29f-6e4182d326e1 Norway
05634acf-ee79-4351-9410-1b41b202e3ea Sweden
e47ed2ae-4cb0-420a-a593-456b145b0c56 Poland
1aab7261-bf8e-43d9-bc37-798cb204156d France
ba367ba3-a7d8-4994-9b29-855b20817586 Belgium
14227284-0e5b-4e52-af37-a4aeb78e3c7b Poland
ded7d2d3-5a78-4c9f-ba50-53f13fa53c06 Hungary
4877890b-9651-406d-be03-6f51e6eb89e7 Belgium
d84d54a6-1a1b-4da6-a50d-781a471b420f Germany
bdc000c1-59e2-4572-a175-8a3c6e99b3e8 Croatia
b3f30028-bc60-46be-aaaa-15875e46f7a6 Finland
7e0c34bb-54ab-4ce8-b52c-8cfaa9e3f40d Czech Republic
acdb347e-3f58-4241-a651-09cf01e6c4e8 Greece
701e2e6d-d450-4c67-9771-4e964f6d09de Poland
80d2e3b5-cd43-453f-88b8-6062afb851aa Germany
d84c2ee4-75e7-4879-bba7-29103fc76147 Germany
ffc4948b-53e4-4b98-82da-face750ea2dd Portugal
50876d50-9b14-45ac-ac67-6eecb6d21325 Spain
55b0666b-1129-4484-90a3-a70880f6cc3a Germany
c5712ab8-5c55-47cf-817f-ef6f1cc8d41e Hungary
ca5c1875-9eb4-4da3-8c29-16134edd4068 France
Environmental
Environmental Information9AKK10103A1058
9AKK108467A6707
Ordering
E-Number (Finland)3655430
EAN8015644627607
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width280 mm
Product Net Height268 mm
Product Net Depth / Length103.5 mm
Product Net Weight12 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width305 mm
Package Level 1 Height285 mm
Package Level 1 Depth / Length370 mm
Package Level 1 Gross Weight14 kg
Package Level 1 EAN8015644627607
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT6
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability5000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles4P
Power Lossat Rated Operating Conditions per Pole 32 W
Rated Current (In)800 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(690 V AC) 19 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(690 V AC) 25 kA
Rated Uninterrupted Current (Iu)800 A
ReleasePR221DS-LS/I
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeT6
Terminal Connection TypeFixed Circuit-Breakers
Front
Test Voltage Max (Utest)3500 V
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0201
Declaration of Conformity - CE9AKK106713A5538
EU Data Act Compliance Declaration1SDH002560A1001
Instructions and Manuals1SDH000511R0001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
