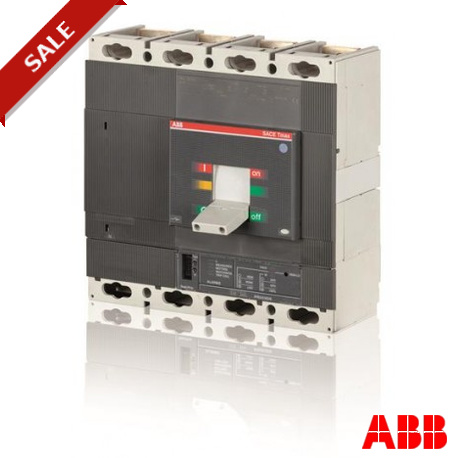

T6H1000 1SDA060573R1 ABB T6H 1000 PR223DS In 1000 4p F F
T6H1000
1SDA060573R1
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T6
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for high-capacity power distribution networks, this Abb automatic circuit breaker protects heavy industrial electrical infrastructure by automatically isolating fault currents and overloads. Breakers of this type ensure operational safety and continuous uptime across complex electrical systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Electrical Durability: 4000 cycle 60 cycles per hour
- Mechanical Durability: 20000 cycle 120 cycles per hour
- Number of Poles: 4
- Power Loss: at Rated Operating Conditions per Pole 50 W
- Product Main Type: SACE Tmax T
- Product Name: Automatic Circuit Breaker
- Product Type: CB
- Rated Current (I n ): 1000 A
- Rated Impulse Withstand Voltage (U imp ): 8 kV
- Rated Insulation Voltage (U i ): 1000 V
- Rated Operational Voltage: 690 V AC 750 V DC
- Rated Uninterrupted Current (I u ): 1000 A
- Release Type: EL
- Standards: IEC 60947
- Sub-type: T6
- Suitable For: T6
More info
▲C.BREAKER TMAX T6H 1000 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR223DS R 1000
Ordering
- EAN:
- 8015644630324
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85362090
Dimensions
- Product Net Width:
- 280mm
- Product Net Height:
- 268mm
- Product Net Depth:
- 103.5mm
- Product Net Weight:
- 12kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 280 mm
- Package Level 1 Height:
- 280 mm
- Package Level 1 Length:
- 369 mm
- Package Level 1 Gross Weight:
- 14 kg
- Package Level 1 EAN:
- 8015644630324
Additional Information
- Electrical Durability:
- 4000 cycle
60 cycles per hour
- Mechanical Durability:
- 20000 cycle
120 cycles per hour
- Number of Poles:
- 4
- Power Loss:
- at Rated Operating Conditions per Pole 50 W
- Product Main Type:
- SACE Tmax T
- Product Name:
- Automatic Circuit Breaker
- Product Type:
- CB
- Rated Current (In):
- 1000 A
- Rated Impulse Withstand Voltage (Uimp):
- 8 kV
- Rated Insulation Voltage (Ui):
- 1000 V
- Rated Operational Voltage:
- 690 V AC
750 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics):
- (220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(690 V AC) 18 kA
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- (220 V AC) 10 kA
(230 V AC) 10 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 50 kA
(500 V AC) 50 kA
(690 V AC) 25 kA
(250 V DC) 2 Poles in Series 70 kA
(500 V DC) 2 Poles in Series 50 kA
(750 V DC) 3 Poles in Series 36 kA
- Rated Uninterrupted Current (Iu):
- 1000 A
- Release Type:
- EL
- Standards:
- IEC 60947
- Sub-type:
- T6
- Suitable For:
- T6
- Suitable for Product Class:
- Moulded Case Circuit Breakers
- Terminal Connection Type:
- Fixed Circuit-Breakers
Front
- Test Voltage Max (Utest):
- 3500 V
- Version:
- F
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 1SDC210015D0201
- Declaration of Conformity - CE:
- 1SDL000165R0006
Classifications
- ETIM 4:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- ETIM 5:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- Object Classification Code:
- Q
