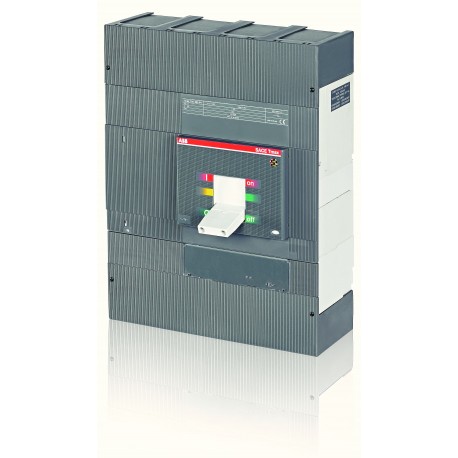

ABB 1SDA069825R1 1SDA069825R1 ABB T6D800 4P F F 1100VDC PV View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA069825R1 ABB T6D800 4P F F 1100VDC PV

1SDA069825R1

069825

ABB

1 Pcs.

T6D800 4P F F 1100VDC PV T6D/PV 800 4p F F 1100V DC

Connectors > Switch disconnector
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB T6D800 4P F F 1100VDC PV is a photovoltaic switch disconnector built to manage high-voltage direct current applications typically found in commercial and utility-scale solar energy arrays. Units of this type allow technicians to manually isolate strings of solar panels safely during servicing or in the event of an emergency.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK10103A1058
  • EAN: 8015644705947
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85352100
  • Product Net Width: 280 mm
  • Product Net Height: 268 mm
  • Product Net Depth / Length: 103.5 mm
  • Product Net Weight: 12 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 305 mm
  • Package Level 1 Height: 285 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK10103A1058
9AKK108467A6707
Ordering
EAN8015644705947
Minimum Order Quantity1 piece
Customs Tariff Number85352100
Dimensions
Product Net Width280 mm
Product Net Height268 mm
Product Net Depth / Length103.5 mm
Product Net Weight12 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width305 mm
Package Level 1 Height285 mm
Package Level 1 Depth / Length370 mm
Package Level 1 Gross Weight14 kg
Package Level 1 EAN8015644705947
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeSwitch Disconnector
Suitable ForT6
VersionF
Technical
Current TypeDC
Number of Poles4P
Rated Current (In)800 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1100 V DC
Rated Operational Voltage1100 V DC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 9.6 kA
Rated Uninterrupted Current (Iu)800 A
Rated Voltage (Ur)1100 V DC
Short-Circuit Performance LevelD
StandardsIEC
Sub-typeT6
Certificates and Declarations
Data Sheet, Technical Information1SDC210300D0201
Declaration of Conformity - CE9AKK106713A9777
Instructions and Manuals1SDH000781R0002
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371403

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
