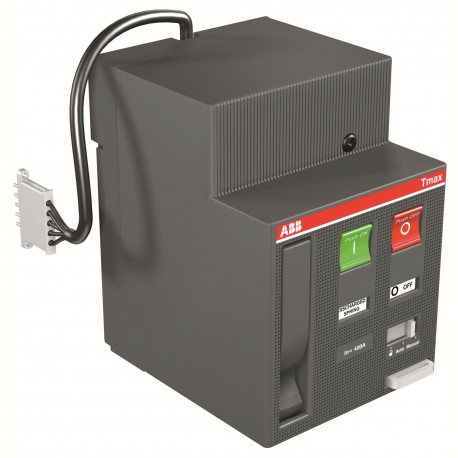

1SDA060403R1 ABB MOE-E MOTOR+COM 220-250VAC/DC T6
1SDA060403R1
060403
ABB
1 Pcs.
Automation > Motor operator for power circuit-breaker
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB MOE-E MOTOR+COM 220-250VAC/DC T6 functions as a motorized operator combined with communication capabilities for automated control of industrial power circuit breakers. This device enables remote switching commands and status monitoring within complex electrical distribution networks. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- EAN: 8015644628772
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 3.9 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 177 mm
- Package Level 1 Height: 228 mm
- Package Level 1 Depth / Length: 194 mm
- Package Level 1 Gross Weight: 3.61 kg
- Package Level 1 EAN: 8015644628772
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8015644628772 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 3.9 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 177 mm |
| Package Level 1 Height | 228 mm |
| Package Level 1 Depth / Length | 194 mm |
| Package Level 1 Gross Weight | 3.61 kg |
| Package Level 1 EAN | 8015644628772 |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | T6 |
| Suitable for Product Class | SACE Tmax T |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC/DC |
| Rated Voltage (Ur) | 220 ... 250 V AC |
| 220 ... 250 V DC | |
| Standards | IEC |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0208 |
| 1SDC210300D0201 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000479R0621 |
| External Classifications and Standards | |
| ETIM 9 | EC001030 - Motor operator for power circuit-breaker |
| ETIM 10 | EC001030 - Motor operator for power circuit-breaker |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370412 |
