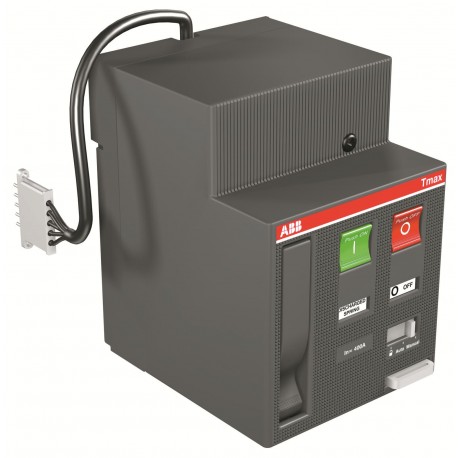

ABB 1SDA060402R1 1SDA060402R1 ABB MOE-E MOTOR+COM 110-125VAC/DC T6 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA060402R1 ABB MOE-E MOTOR+COM 110-125VAC/DC T6

1SDA060402R1

060402

ABB

1 Pcs.

MOE-E MOTOR+COM 110-125VAC/DC - T6 MOE-E T6 110...125 Vac/dc x REM.CONT.

Automation > Motor operator for power circuit-breaker
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An ABB MOE-E MOTOR+COM 110-125VAC/DC T6 is a motorized operating mechanism with communication capabilities designed for automated remote control and supervision of heavy-duty circuit breakers within electrical switchgear distribution assemblies.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • EAN: 8015644628765
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Weight: 3.9 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 177 mm
  • Package Level 1 Height: 228 mm
  • Package Level 1 Depth / Length: 194 mm
  • Package Level 1 Gross Weight: 3.61 kg
  • Package Level 1 EAN: 8015644628765

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
EAN8015644628765
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Weight3.9 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width177 mm
Package Level 1 Height228 mm
Package Level 1 Depth / Length194 mm
Package Level 1 Gross Weight3.61 kg
Package Level 1 EAN8015644628765
Additional Information
Product Main TypeAccessories for Tmax T
Product NameAccessory
Product TypeAccessory
Suitable ForT6
Suitable for Product ClassSACE Tmax T
Technical
Configuration TypeLoose or configurable
Current TypeAC/DC
Rated Voltage (Ur)100 ... 125 V AC
100 ... 125 V DC
StandardsIEC
Certificates and Declarations
Data Sheet, Technical Information1SDC210015D0208
1SDC210300D0201
Declaration of Conformity - CERefer to the EU Declaration of the relative Circuit Breaker
Instructions and Manuals1SDH000479R0621
External Classifications and Standards
ETIM 9EC001030 - Motor operator for power circuit-breaker
ETIM 10EC001030 - Motor operator for power circuit-breaker
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370412
