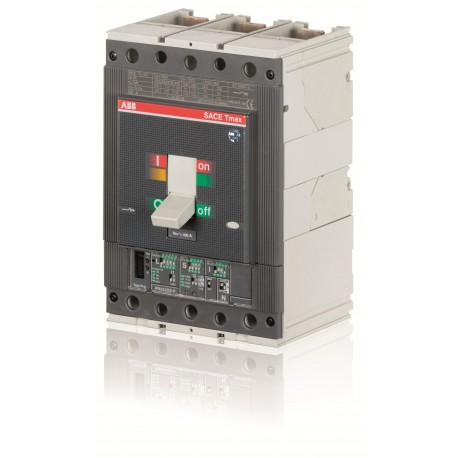

1SDA054549R1 ABB T5V630 PR222DS/P-LSI In630 3p FFC1150VAC
1SDA054549R1
054549
ABB
1 Pcs.
T5V630 PR222DS/P-LSI In630 3p FFC1150VAC
T5V630 PR222DS/P LSI R630 3P F FC 1000V
Automation > Power circuit-breaker for trafo/generator/installation protection
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 8e1a0fac-ad18-4c62-b602-fb11aa35e84f China |
| Simplified SCIP | c3adfc4c-b6e2-49d4-8811-7611e383571a Germany |
| 87aeba0d-584c-432e-8fdb-4cce91e7a04a Poland | |
| 34d3eb4e-0c31-44ff-b237-adf5c2a13c9f Croatia | |
| aa2c431c-c43e-4bdf-8ec0-903a701f84ce Belgium | |
| 00e7d8b1-5297-468d-a31c-2a900a2f16d9 Norway | |
| d4825d8d-02f9-4d09-9568-99d9f1343fd1 Czech Republic | |
| 832dc3a0-0740-4f7c-95a9-8d8bda082b0b Hungary | |
| 629f4a9a-2b5f-4df3-b0c6-1a187cebef8c Finland | |
| 2bdf724c-39ff-4792-a9f8-c53ab035fc39 Germany | |
| 927f9f27-8e01-4665-94e4-3ff1a32dbdf2 Denmark | |
| decb43da-3e7e-4a23-9e22-a95aed136b01 Germany | |
| 5470d1b2-70c3-4b01-b600-3151afa41f27 Greece | |
| f532cd20-5ab3-4a24-b675-815bdb773e88 Estonia | |
| da1c07af-b8bb-45f3-aff4-b04856506ee2 Poland | |
| 019a6c7e-32e3-4f4d-aeff-765c725c148d Netherlands | |
| b9fb27be-f0cf-4479-9dfa-0dc50b9fcf77 Hungary | |
| d81dc846-5cf3-4bdb-99e0-2012a0ef67c6 Poland | |
| 10726416-c349-4b63-92aa-405816c817b6 Sweden | |
| 172897d9-eca1-4e6b-b373-03113e3a20fb Bulgaria | |
| 50201017-08b4-4b32-94c0-5861626761af Portugal | |
| b99a40fb-b967-4ae7-b0c9-b08154d8b3db Germany | |
| 9e9b25dc-d1b6-4c0b-a4b2-a6d60b8dec41 France | |
| cc208b02-7da8-4c27-92af-aefae92e7cc5 France | |
| d74602bb-50ef-4a4f-9efe-de61c2984611 Belgium | |
| 766591a4-8cfc-4323-b870-f2e078f20cb2 Sweden | |
| 9218f4e7-2fa1-41f5-ac66-9ded90732bac Spain | |
| f6e331bd-f5a9-401e-80b7-72a045c341ed Germany | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644556501 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85352100 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 5.1 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 8015644556501 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 41 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1150 V |
| Rated Operational Voltage | 1150 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (1000 V AC) 10 kA |
| (1150 V AC) 6 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (1000 V AC) 20 kA |
| (1150 V AC) 12 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | PR222DS/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front for Copper Cables | |
| Test Voltage Max (Utest) | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210300D0201 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| GL Certificate | 1SDL000163R0062 |
| Instructions and Manuals | 1SDH000458R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100.00 |
| Instructions and Manuals (Part 3) | 1SDH000436R0502 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
