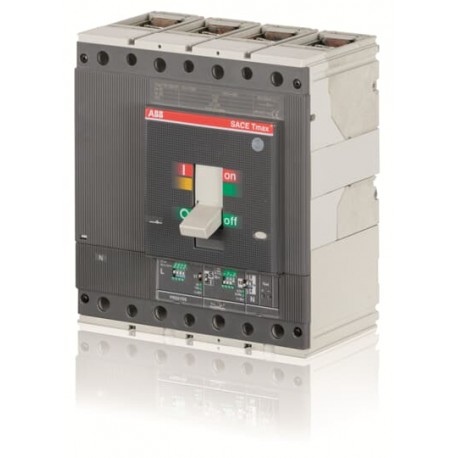

ABB 1SDA063452R1 1SDA063452R1 ABB T5V630 PR221DS-LS/I In630 4p FFC 1150VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA063452R1 ABB T5V630 PR221DS-LS/I In630 4p FFC 1150VAC

1SDA063452R1

063452

ABB

1 Pcs.

T5V630 PR221DS-LS/I In630 4p FFC 1150VAC T5V630 PR221DS LS/I R630 4P F FC 1000V

Automation > Power circuit-breaker for trafo/generator/installation protection
T5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB 1SDA063452R1 T5V630 PR221DS-LS/I In630 4p FFC 1150VAC is a high-voltage molded case circuit breaker built for demanding electrical distribution and industrial applications. This hardware category provides necessary switching and fault protection across multi-pole configurations in high-demand environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK10103A1056
  • REACH Declaration: 9AKK108466A1425
  • RoHS Information: 9AKK108466A1424
  • RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • EAN: 8015644660765
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85352100
  • Product Net Width: 184 mm
  • Product Net Height: 205 mm
  • Product Net Depth / Length: 103.5 mm
  • Product Net Weight: 6.2 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 248 mm
  • Package Level 1 Height: 240 mm

More info

▲
Circular Value
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK10103A1056
9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
EAN8015644660765
Minimum Order Quantity1 piece
Customs Tariff Number85352100
Dimensions
Product Net Width184 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight6.2 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight6.2 kg
Package Level 1 EAN8015644660765
Additional Information
Electrical Durability5000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles4
Power Lossat Rated Operating Conditions per Pole 41 W
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Rated Current (In)630 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1150 V
Rated Operational Voltage1150 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(1000 V AC) 10 kA
(1150 V AC) 6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(1000 V AC) 20 kA
(1150 V AC) 12 kA
Rated Uninterrupted Current (Iu)630 A
ReleasePR221DS-LS/I
Release TypeEL
Short-Circuit Performance LevelV
StandardsIEC
Sub-typeT5
Suitable ForT5
Suitable for Product ClassMoulded Case Circuit Breakers
Terminal Connection TypeFixed Circuit-Breakers
Front for Copper Cables
VersionF
Certificates and Declarations
Data Sheet, Technical Information1SDC210300D0201
Declaration of Conformity - CE9AKK106713A5539
GL Certificate1SDL000163R0062
Instructions and Manuals1SDH000458R0001
Classifications
ETIM 7EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
