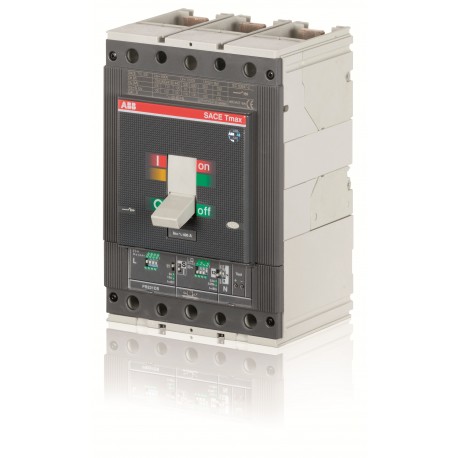

1SDA054539R1 ABB T5V400 PR221DS-LS/I In400 3p FFC 1150VAC
1SDA054539R1
054539
ABB
1 Pcs.
T5V400 PR221DS-LS/I In400 3p FFC 1150VAC
T5V400 PR221DS LS/I R400 3P F FC 1000V
Automation > Power circuit-breaker for trafo/generator/installation protection
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | ff010e07-1ff0-44f0-920b-d6216a41e7d3 Italy (IT) |
| Simplified SCIP | 752994ca-d168-40aa-b0ac-b950ab5ef38d France (FR) |
| ce4572b7-6bb3-40f4-9593-6b6986e96d4c Germany (DE) | |
| c17b026b-4459-426f-81a5-35fecae13f29 Germany (DE) | |
| 46a9cf8f-936c-4453-924f-f6a7720b350a Croatia (HR) | |
| f68398cf-93bb-44ef-834a-892b0b22248e Sweden (SE) | |
| 079528c5-8fbc-4d3e-ae30-f4e4f24cad94 Denmark (DK) | |
| 23138a29-24bb-48b7-ade7-8b428926045f Germany (DE) | |
| 1bbb9b71-d472-4d48-a5d0-68cf1549ea9f Hungary (HU) | |
| a7c50d83-b219-4cd5-bad1-f7ef595acf65 Spain (ES) | |
| 5117ede9-8bd4-4d16-98b8-bb86ba76aaa2 Belgium (BE) | |
| 11a72879-f8ec-4845-b6c8-c9eb67b9e2f9 Hungary (HU) | |
| 64255129-1c3b-46e3-a7b8-5025477b8958 Belgium (BE) | |
| 2e8d7f9f-dd33-4fc9-b5f7-688beafb368b Estonia (EE) | |
| 79a4ce78-84fe-472f-9f15-95971bb55b19 Finland (FI) | |
| 11d88c07-bd72-4c8a-9330-acdddf291931 Poland (PL) | |
| b222b10f-9c52-4e65-b30d-3da6e3b2291a France (FR) | |
| 493e3fa8-8cc3-4f4e-b0d6-711efaec2525 Germany (DE) | |
| 50c778e7-b921-4a2b-881e-74f67d4e02ac Greece (GR) | |
| ce5ea7e5-42cb-41ef-8486-0799e7234921 Bulgaria (BG) | |
| 8acb7126-5627-4351-9f9b-aa53174bc18b Norway (NO) | |
| 8f683962-34e4-4bc0-8ad9-67bb2c12fa61 Netherlands (NL) | |
| 37abfb33-3e9d-489a-9d76-d8b8cf100ee2 Sweden (SE) | |
| 0ee3cfe5-b343-4653-9559-48c42beceac4 Poland (PL) | |
| 3636750e-ba85-404a-978a-305435e31c21 Germany (DE) | |
| 16622b87-5bbf-4852-88de-eb63a41716d2 Portugal (PT) | |
| 4dc31a2b-72f6-4d67-a5b3-6f95d6ed1cf2 Czech Republic (CZ) | |
| f0c95135-e7ee-4c9b-bb7b-3b81a39b4e4b Poland (PL) | |
| Ordering | |
| EAN | 8015644556402 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85352100 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 5.1 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 8015644556402 |
| Additional Information | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3 |
| Power Loss | at Rated Operating Conditions per Pole 16.5 W |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 1150 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (1000 V AC) 10 kA |
| (1150 V AC) 6 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (1000 V AC) 20 kA |
| (1150 V AC) 12 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | T5 |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front for Copper Cables | |
| Test Voltage Max (Utest) | 3500 V |
| Version | F |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210300D0201 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| GL Certificate | 1SDL000163R0062 |
| Instructions and Manuals | 1SDH000458R0001 |
| Classifications | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
| Feature Name | Feature Value |
|---|---|
| Rated permanent current Iu (EF001389) | 400 A |
| Rated voltage (EF003977) | 1150 V |
| Overload release current setting (EF002336) | 160.0 A |
| Adjustment range short-term delayed short-circuit release (EF007129) | 400 A |
| Adjustment range undelayed short-circuit release (EF007131) | 400 A |
| Integrated earth fault protection (EF007296) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for DIN rail (top hat rail) mounting (EF007250) | No |
| DIN rail (top hat rail) mounting optional (EF008904) | No |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| With switched-off indicator (EF007006) | No |
| With integrated under voltage release (EF001390) | No |
| Number of poles (EF001391) | 3 |
| Position of connection for main current circuit (EF006671) | Front |
| Type of control element (EF006976) | Toggle |
| Complete device with protection unit (EF008906) | Yes |
| Motor drive integrated (EF006697) | No |
| Motor drive optional (EF007386) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
