> ABB > Molded case "Isomax-Tmax" > T5 > 063485

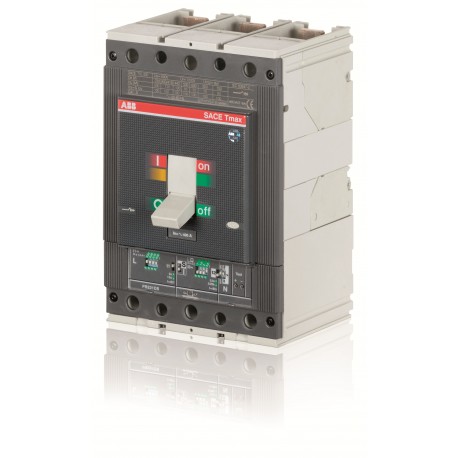

ABB 1SDA063485R1 1SDA063485R1 ABB T5V400 PR221DS-LS/I In320 3p FFC 1150VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA063485R1 ABB T5V400 PR221DS-LS/I In320 3p FFC 1150VAC

1SDA063485R1

063485

ABB

1 Pcs.

T5V400 PR221DS-LS/I In320 3p FFC 1150VAC T5V400 PR221DS LS/I R320 3P F FC 1000V

Automation > Power circuit-breaker for trafo/generator/installation protection
T5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP57f6bb97-0e73-4dd5-afe7-f8b1fb5aa74f Italy
Simplified SCIP95d287c9-63e7-4e56-a2d3-a5e6314d27b8 Sweden
d2778f50-a3d1-4668-b15e-a4bcf61328ed Finland
e7eeb7c0-8af4-4af9-a38e-b3baa81dd5c4 Estonia
51ec20bc-0694-4cd2-8075-2f0b179ca936 Belgium
1e91e8b5-b0f8-4f51-9d7c-1666d0d2ea3d Germany
46c8b3af-50cf-4f19-8fe4-8be7046a6468 France
5b032d94-46a8-405b-8876-ef3c718a8419 Croatia
02e6845e-3ac1-4e62-a5b7-0df0e90bb935 Germany
a19f6934-ad0e-4594-9f40-1a867847b296 Sweden
16bc8246-3eaf-41a5-bbe3-48ebe303698c Germany
0f3df2f9-6e81-4cb6-899c-c01bd3d5797a Germany
e40a51c4-b6f1-4123-955c-8e6ba445f4fd Greece
da1fa476-c2ca-496c-831c-f354bcbc5ba3 Denmark
5300251a-c0c6-4a05-a2c2-a7da5c98c15a France
fad07346-808c-48f1-8687-dcd6b4f86339 Hungary
dd26ef13-7a5e-4471-94e9-7e786d6b8d3f Belgium
e40ce2c5-d1a2-4126-a6f1-1f0afda8133a Spain
aa795b5e-4c44-4718-ae85-2975a31a41aa Poland
18fb7e4d-7b9d-4335-be63-3e833a77618f Poland
b0fd95fb-46e1-40a1-902c-d3d311660192 Bulgaria
d31bb2c7-0a54-4662-a2bb-b2494206760a Norway
db260b9d-a54c-4935-97bf-3fef38646ede Netherlands
cb8897bc-ebb4-4a3b-89ee-e0c3ee1e8935 Germany
c409b183-5492-4ec0-ab5c-4a5cb2121594 Portugal
53efef34-1dd3-4e1d-8fb4-2dc415512cdb Czech Republic
055d18c5-cd05-41b5-ae3d-7dcdb29273b0 Hungary
0a31953e-9b40-4637-9f83-6ccd89b1096f Poland
Environmental
Environmental Information9AKK10103A1056
9AKK108467A6707
Ordering
EAN8015644661175
Minimum Order Quantity1 piece
Customs Tariff Number85352100
Dimensions
Product Net Width140 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight5.1 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight5.1 kg
Package Level 1 EAN8015644661175
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT5
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability7000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 10.6 W
Rated Current (In)320 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage1150 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(1000 V AC) 10 kA
(1150 V AC) 6 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(1000 V AC) 20 kA
(1150 V AC) 12 kA
Rated Uninterrupted Current (Iu)400 A
ReleasePR221DS-LS/I
Release TypeEL
Short-Circuit Performance LevelV
StandardsIEC
Sub-typeT5
Terminal Connection TypeFixed Circuit-Breakers
Front for Copper Cables
Certificates and Declarations
Data Sheet, Technical Information1SDC210300D0201
Declaration of Conformity - CE9AKK106713A5539
EU Data Act Compliance Declaration1SDH002560A1001
Instructions and Manuals1SDH000458R0001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA063485R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 320 A
Rated voltage (EF003977) 1150 V
Overload release current setting (EF002336) 128.0 A
Adjustment range short-term delayed short-circuit release (EF007129) 320 A
Adjustment range undelayed short-circuit release (EF007131) 320 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
