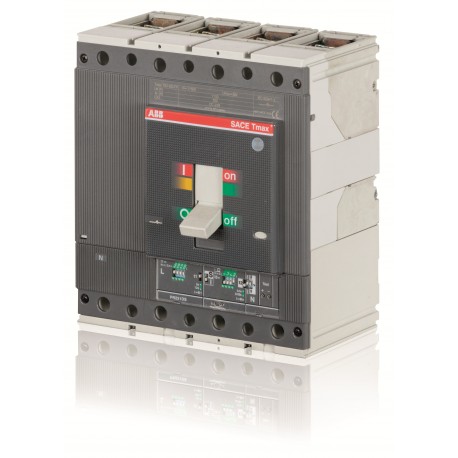

ABB 1SDA054432R1 1SDA054432R1 ABB T5V 630 PR221DS-LS/I In 630 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA054432R1 ABB T5V 630 PR221DS-LS/I In 630 4p F F

1SDA054432R1

054432

ABB

1 Pcs.

T5V 630 PR221DS-LS/I In=630 4p F F T5V630 PR221DS LS/I R630 4P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPa6b65d3c-04be-4342-aae1-07637363245a China
Simplified SCIP3b88ab31-0139-4f17-bc45-d1eec24cb355 Netherlands
fa6c8947-d0f8-4ad9-ac8a-0cd4ebc49bf7 Hungary
e302512c-3e14-4096-baca-1b8844b10991 Poland
a756c78f-adde-468f-988b-a817ac5e9e31 Estonia
642a3214-cef8-44b0-bf32-066f4e2b3b1b Germany
e16cb88b-4b5a-4e73-9e7a-2ceab69fc835 Germany
ec1b208e-1f1f-4294-bd46-fb6eaf6a848e Poland
73102d4b-b603-4aea-a769-82f85da6c4f2 France
5ca13636-0898-4195-b70c-dc6da36c3cc0 Spain
a746528f-bdec-4ed4-8b9a-b11a4f40a215 Finland
ec3ccbfe-2d68-4b28-af9a-cea9e5adcd22 Belgium
085ac21d-209e-4773-8e7c-e80f5b2cc75e Denmark
221bda46-e81f-49ac-8321-60fbcbf56471 Germany
79d56c47-eff6-413a-bb5d-3997f0697ee0 Sweden
8e1ae366-2866-4cdb-903a-b305cac5b3a6 Bulgaria
117be8d3-f396-4f8b-8d1e-3ee203a3abdd Greece
fefd6c7b-5801-47b5-8655-7b32f686e8ef Portugal
c8e4ab2c-4106-466c-9c16-d77f716cb1fd Sweden
3ba7c8e8-6622-4c03-aa58-d292df97ea12 Germany
4cee4507-5456-40fa-99a7-d7cd8bf1a188 France
5e9702f4-6aa7-4ead-a3cb-1843e63939b6 Belgium
1931995f-50d4-440c-b8a7-fd3b568f02e9 Czech Republic
de913d06-4a74-4a58-8e38-7d72af1002f8 Poland
eca0273e-f3b8-414e-8cf3-89d7183fb7f8 Croatia
e76fb856-ebe2-4e86-a512-692d95cddb86 Germany
6cdadaa9-8a88-43e0-98d4-e5c6d3295216 Norway
d00895c2-3b45-44d4-aa9f-6f638093b9e5 Hungary
Environmental
Environmental Information9AKK10103A1056
9AKK108467A6707
Ordering
E-Number (Finland)3655350
EAN8015644555368
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width186 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight6.2 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight6.2 kg
Package Level 1 EAN8015644555368
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT5
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability5000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles4P
Power Lossat Rated Operating Conditions per Pole 41 W
Rated Current (In)630 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 200 kA
(230 V AC) 200 kA
(380 V AC) 200 kA
(400 V AC) 200 kA
(415 V AC) 200 kA
(440 V AC) 180 kA
(500 V AC) 75 kA
(690 V AC) 40 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 200 kA
(230 V AC) 200 kA
(380 V AC) 200 kA
(400 V AC) 200 kA
(415 V AC) 200 kA
(440 V AC) 180 kA
(500 V AC) 150 kA
(690 V AC) 80 kA
Rated Uninterrupted Current (Iu)630 A
ReleasePR221DS-LS/I
Release TypeEL
Short-Circuit Performance LevelV
StandardsIEC
Sub-typeT5
Terminal Connection TypeFixed Circuit-Breakers
Front
Test Voltage Max (Utest)3500 V
Test Voltage at Industrial Frequency for 1 Minute3500 V
Certificates and Declarations
Data Sheet, Technical Information1SDC210004D0203
Declaration of Conformity - CE9AKK106713A5539
EU Data Act Compliance Declaration1SDH002560A1001
GL Certificate1SDL000163R0062
Instructions and Manuals1SDH000437R0001
Instructions and Manuals (Part 2)ITSCE-RH0100001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
