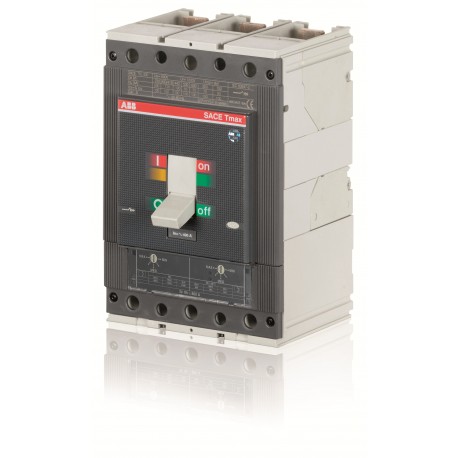

1SDA063437R1 ABB T5V 400 TMA 320-3200 3p F FC 1150V AC
1SDA063437R1
063437
ABB
1 Pcs.
T5V 400 TMA 320-3200 3p F FC 1150V AC
T5V400 TMA R320 3P F FC 1000V
Automation > Power circuit-breaker for trafo/generator/installation protection
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb T5V 400 TMA 320-3200 3p F FC 1150V AC molded case circuit breaker protects electrical systems operating at higher voltages from damaging overcurrents. It safely isolates faulty circuits to protect sensitive equipment and personnel.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 2a8ede84-b7b1-4042-9135-0ab4039020d5 Italy
- Simplified SCIP: 59e82a11-d7b9-4f40-a57f-f218cb7d68c0 Hungary
- Environmental Information: 9AKK10103A1056
- EAN: 8015644660611
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85352100
- Product Net Width: 140 mm
- Product Net Height: 205 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 4.8 kg
- Package Level 1 Units: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 2a8ede84-b7b1-4042-9135-0ab4039020d5 Italy |
| Simplified SCIP | 59e82a11-d7b9-4f40-a57f-f218cb7d68c0 Hungary |
| dd4e7070-cb19-4cf7-b3a8-c4782e068dfc Spain | |
| e0b6bf16-9310-475d-84fb-2df06fc738bc Belgium | |
| 53dc9086-2211-48b6-8787-61cd6c456174 Germany | |
| 57acb97a-e529-4fdf-9374-14c7ffd029f4 France | |
| 8c42ec30-9e84-465e-8ce0-12bf4ef926a7 Germany | |
| 7d76ea93-94db-492e-8efe-01d41e3f3e77 Croatia | |
| 9c39af87-745b-4009-a821-ade886e7e2b7 Denmark | |
| a0a82929-bfd1-481a-9a9d-c82e591b7992 Germany | |
| c346699e-d5b9-4f13-84b8-1dc9ac74b49e Germany | |
| 42a35a48-083d-4269-af78-b8047e41c9a3 Poland | |
| 8f2d639e-9c87-4486-9f51-14883af6fffd Czech Republic | |
| 12f67a4e-4aaa-49d7-b33c-d8612f96d52c Portugal | |
| fc7028e1-3b7e-48b2-b637-ff469bd8ca20 Estonia | |
| 6032b4a7-d461-4ac1-a463-56b3efa866d4 Germany | |
| f3d700fb-0fbe-49a3-8184-f1ecea9f938e Sweden | |
| 405f1285-3d75-4f36-9177-6f79b4dc2ace Netherlands | |
| 0cdb2717-c336-4832-9c7f-2744fe313305 Poland | |
| 028cd7eb-728c-415c-8db2-e7fface723dc Bulgaria | |
| 58bdfc1f-6ba3-433f-8ae4-791a606cf50e Norway | |
| f949ee1d-08b7-4f60-bbc8-32681c7d9428 Greece | |
| 12916109-7f45-4d25-ae91-810565d82026 France | |
| cd588327-9512-4d16-a70b-3175fdf92e40 Belgium | |
| 12ee423e-5c36-4d57-8fd1-cefbe4fd316b Hungary | |
| 3c2327b9-b3e9-4bee-9b8f-9fb3e0819ee5 Poland | |
| 7b8f3084-7ea8-4ad6-9368-cd4deb01912a Finland | |
| bb977caa-5819-4266-8e52-69706aec7d52 Sweden | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644660611 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85352100 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.8 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 4.8 kg |
| Package Level 1 EAN | 8015644660611 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 13.6 W |
| Rated Current (In) | 320 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 1150 V AC |
| 1000 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (1000 V AC) 10 kA |
| (1150 V AC) 6 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (1000 V AC) 20 kA |
| (1150 V AC) 12 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | TMA |
| Release Type | TM |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front for Copper Cables | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210300D0201 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| Instructions and Manuals | 1SDH000458R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
