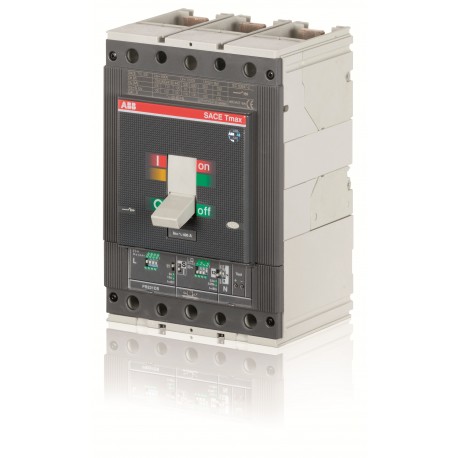

1SDA054381R1 ABB T5V 400 PR221DS-LS/I In 400 3p F F
1SDA054381R1
054381
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB circuit breaker is engineered to automatically interrupt electrical power flow during fault conditions, protecting heavy-duty electrical systems from overloads and short circuits. It serves as a primary switching and protective device in industrial power distribution panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 3bb16d4f-2a3a-4110-9f97-33e1ec30a3ff China
- Simplified SCIP: 6af10d3b-bfa3-4620-b1a1-e164ae485a55 Germany
- Environmental Information: 9AKK10103A1056
- E-Number (Finland): 3655334
- EAN: 8015644554798
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 140 mm
- Product Net Height: 205 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 5.1 kg
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 3bb16d4f-2a3a-4110-9f97-33e1ec30a3ff China |
| Simplified SCIP | 6af10d3b-bfa3-4620-b1a1-e164ae485a55 Germany |
| 8f56435b-6cf5-48a5-87d5-eb77a61c2489 Norway | |
| 7e4723b5-8079-434a-873b-8e53be424262 Netherlands | |
| 239f3cba-bab0-497a-9c6e-9d16a6a97668 France | |
| eb56982e-cce9-4d54-bd5e-f64a2f78cfe1 Sweden | |
| 9e07af73-8a3e-4cca-b6bf-f5a2a8487e37 Finland | |
| a9dc6e3a-0ff9-4a60-b4d5-ad1ab50ce40f Poland | |
| 47505af9-17e8-4b48-b111-d7584dc4739d France | |
| 813480ef-6bcf-4b7a-a13f-8d474a4655cb Germany | |
| 2b256551-440d-4c91-a2ea-bd7716d1dfcf Germany | |
| 28cdc837-9b62-45c6-990f-af961ab43e36 Germany | |
| 31056ff2-1e1e-4c2c-9a93-0eba34e997a8 Greece | |
| d513e37b-a3a2-46b9-a851-88b0eada4fee Hungary | |
| 493163ee-62ae-4568-b0e3-d1181193aacb Spain | |
| be06ded6-16fb-468e-adc2-d88dc17cbd61 Denmark | |
| bec2b8df-a4a6-4d6a-b2d0-0e2ff16716b0 Czech Republic | |
| 447f9375-fe09-490f-94c6-d2a69cd00460 Belgium | |
| fac7c4ea-20b8-4d0c-9cd0-c66881f57f0f Bulgaria | |
| 88d732d7-b4f2-44f7-affe-4150782df21b Portugal | |
| 35f97a3c-8d4e-4b3f-b0da-e19935012b7a Germany | |
| 9690a9aa-cf33-46a0-9f96-7fc0e4bcabef Poland | |
| 5872dd5b-ffd0-495e-8c40-ffcea01c7a18 Poland | |
| ea66f817-f183-4b0a-b10e-1ad401f91fad Sweden | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655334 |
| EAN | 8015644554798 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 5.1 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 8015644554798 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 16.5 W |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (380 V AC) 200 kA | |
| (400 V AC) 200 kA | |
| (415 V AC) 200 kA | |
| (440 V AC) 180 kA | |
| (500 V AC) 150 kA | |
| (690 V AC) 80 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (380 V AC) 200 kA | |
| (400 V AC) 200 kA | |
| (415 V AC) 200 kA | |
| (440 V AC) 180 kA | |
| (500 V AC) 150 kA | |
| (690 V AC) 80 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| GL Certificate | 1SDL000163R0062 |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
