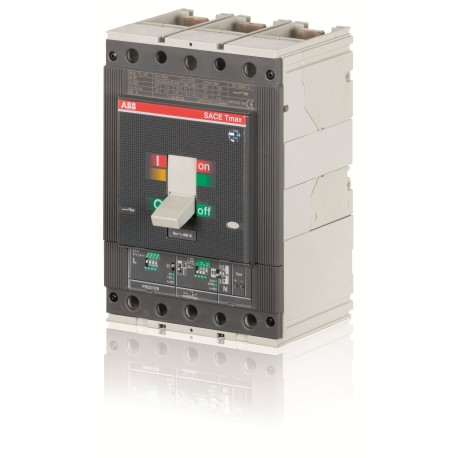

ABB 1SDA054335R1 1SDA054335R1 ABB T5S400 PR221DS-I R400 3P F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA054335R1 ABB T5S400 PR221DS-I R400 3P F F

1SDA054335R1

054335

ABB

1 Pcs.

T5S400 PR221DS-I R400 3P F F T5S 400 PR221DS-I In=400 3p F F

Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPfe82b895-4413-48ff-8b23-19e8dab54555 Italy
Simplified SCIP0e658b91-f70d-4bcb-91c1-fa69f499a1cc Hungary
9cdb47f6-bf1d-4cc7-b763-1e28a0b13bd8 Netherlands
64a4e88f-4a8e-4802-9caa-7a7a2ac24213 Finland
c3af42d8-1060-4c0a-82dc-d9aaa360ddfd Estonia
fcde43f8-7af8-4528-b863-9a0ab0914e02 Belgium
b56647e6-71c8-4421-a446-2d7b8c2c086f France
06137e8b-6d7f-4940-bfe2-49c74c13a6d6 Germany
dabc4bc7-ec4b-4727-9ea1-64b0066863a2 Greece
e709c95d-0a02-417a-823f-7e3784978c53 Belgium
ad93caf4-f5a5-4e51-b517-21ff13125dc1 Hungary
93694738-b905-4ab0-8bb0-6a77889c8b5d Spain
87e74e20-4313-4687-84a2-f44e8bc3b029 Croatia
e2da2dc6-e499-458a-9bf2-4c0b1643ef30 Germany
b42b6980-4836-4323-a83d-66a15ec5a011 France
73305919-0e7e-4f53-b766-9cf7c86d7f7e Germany
94757b85-2a37-47d1-9f32-97d22509e255 Germany
499808e4-dd47-498e-84c2-723989d27d06 Sweden
1d5bdc49-eab1-410b-b6ae-79a058926e6e Denmark
61dbe464-ede0-483a-962a-203a243374b1 Czech Republic
5b97d417-c3fa-44cf-bb44-73b74ea84290 Germany
ac4cf2a5-7290-4e20-9838-bf1ddcb3059b Portugal
e0230e49-e5ff-41cf-b9af-72f9707e9ba7 Sweden
bab116e3-c0d4-4f92-b29b-56742d51b709 Norway
32027a76-9bf0-48c5-ac19-cf4b129624a5 Bulgaria
3095b3c7-73a5-495c-81cf-565247162bdc Poland
f4ab698d-5278-4735-91da-c93e23c75b63 Poland
911fb0e5-a398-4e50-b461-0d99f49e73d0 Poland
Environmental
Environmental Information9AKK10103A1056
9AKK108467A6707
Ordering
E-Number (Finland)3655531
EAN8015644554330
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight5.1 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight5.1 kg
Package Level 1 EAN8015644554330
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT5
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability7000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 16.5 W
Rated Current (In)400 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 40 kA
(500 V AC) 30 kA
(690 V AC) 25 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 40 kA
(500 V AC) 30 kA
(690 V AC) 25 kA
Rated Uninterrupted Current (Iu)400 A
ReleasePR221DS-I
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeT5
Terminal Connection TypeFixed Circuit-Breakers
Front
Test Voltage Max (Utest)3500 V
Test Voltage at Industrial Frequency for 1 Minute3500 V
Certificates and Declarations
Data Sheet, Technical Information1SDC210004D0203
Declaration of Conformity - CE9AKK106713A5539
EU Data Act Compliance Declaration1SDH002560A1001
GL Certificate1SDL000163R0062
Instructions and Manuals1SDH000437R0001
Instructions and Manuals (Part 2)ITSCE-RH0100001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
