> ABB > Molded case "Isomax-Tmax" > T5 > 054406

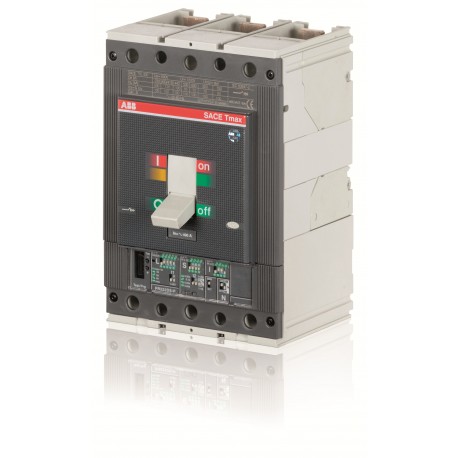

ABB 1SDA054406R1 1SDA054406R1 ABB T5S 630 PR222DS/P-LSI In 630 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA054406R1 ABB T5S 630 PR222DS/P-LSI In 630 3p F F

1SDA054406R1

054406

ABB

1 Pcs.

T5S 630 PR222DS/P-LSI In=630 3p F F T5S630 PR222DS/P LSI R630 3P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T5
