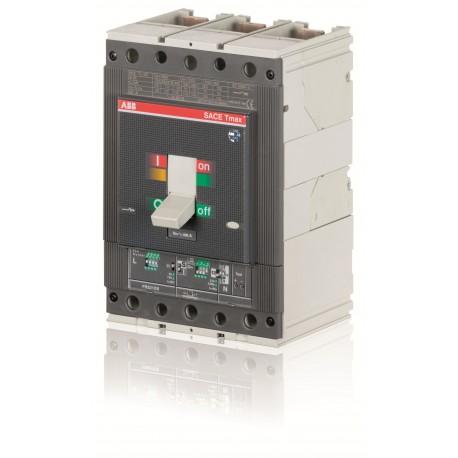

1SDA054404R1 ABB T5S 630 PR221DS-LS/I In 630 3p F F
1SDA054404R1
054404
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb circuit breaker (1SDA054404R1) protects electrical infrastructure by interrupting high fault currents before they can cause thermal or mechanical damage to cables and loads. Manufacturing plants and commercial facilities utilize these molded case units to maintain robust power protection schemes.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 3cc1854c-e229-4e90-8014-2570f5ead86c Italy
- Simplified SCIP: be1e2efc-4e49-451e-b1a6-42f9a17b0941 Germany
- Environmental Information: 9AKK10103A1056
- E-Number (Finland): 3655326
- E-Number (Norway): 4384074
- E-Number (Sweden): 3180384
- EAN: 8015644555023
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 140 mm
- Product Net Height: 205 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 3cc1854c-e229-4e90-8014-2570f5ead86c Italy |
| Simplified SCIP | be1e2efc-4e49-451e-b1a6-42f9a17b0941 Germany |
| 99ee55ca-b9a8-4a5a-975c-ba30a7b359e7 Poland | |
| 647fb0e9-cfc6-40b1-862b-bd68a95f7af7 Spain | |
| b8687124-e884-4908-a5f6-8fbebaadecfc Netherlands | |
| 24a095ec-605d-4ad9-ac91-de08611eed27 Norway | |
| 73585117-b278-4945-968d-a4c4f1f1b072 Denmark | |
| 6e499506-5174-409c-a3d0-0c8012ef3074 Netherlands | |
| 70937a86-88a5-4a00-8aa3-0c36d94606fc Germany | |
| 9236f05a-de1f-44be-935e-244a07e65d0c Germany | |
| 4859d3fe-7320-484c-a0b4-d79cfeb3825e Croatia | |
| 678d50bf-5a3e-4edd-9b51-6b448a7abc5d Czech Republic | |
| 7c07d9fa-7935-47a8-b84d-081ffc9b411e Poland | |
| c08b0dd8-f14f-4122-8688-641d6ae8249a Netherlands | |
| 8a759fe5-d326-4a8d-a12f-1f228dabc25c Netherlands | |
| 56346e37-97a7-4579-afe2-bb916a9cd542 Estonia | |
| 9bed9cd3-49f5-43af-a59a-7e889977b607 Greece | |
| b685936c-3573-4c40-982c-8dbab505311a Portugal | |
| b91b3302-a2dc-443d-a88f-e3e8bc60f067 Bulgaria | |
| 24454c4b-c18f-4f1a-a21b-23ba28c776c1 Sweden | |
| 2040079e-6c07-4d16-ac7c-3ea700f2967d Poland | |
| cc4dc495-9c23-47cb-a8c6-d5291cff5572 France | |
| f8eadf41-fa40-438e-91f8-f1e7c9a3ccea Sweden | |
| 64a12dc8-e0aa-45bf-b474-890908632d8c Germany | |
| ff51e356-250d-4ad6-a1ce-b0ebd1ec1502 Germany | |
| ee960abb-8e8f-4052-a4ce-1e12e8b29039 France | |
| d5ce4829-d16c-4479-ac79-b1f0815288fe Netherlands | |
| 1ccab4ee-b395-43db-a82e-aa376e72e068 Finland | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655326 |
| E-Number (Norway) | 4384074 |
| E-Number (Sweden) | 3180384 |
| EAN | 8015644555023 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.875 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 8015644555023 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 41 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 40 kA | |
| (500 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 40 kA | |
| (500 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| GL Certificate | 1SDL000163R0062 |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
