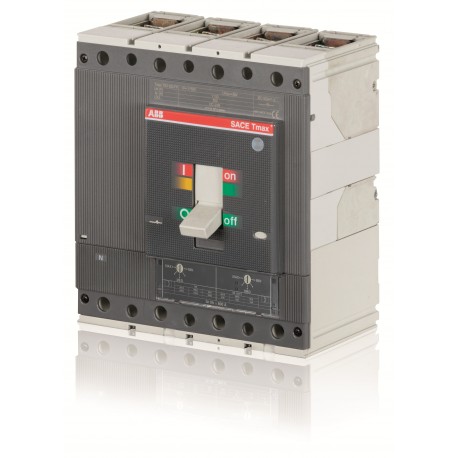

1SDA054480R1 ABB T5S 400 TMA 400-4000 4p F F InN 100%In
1SDA054480R1
054480
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing robust fault protection for industrial power systems, this Abb 1SDA054480R1 molded case circuit breaker ensures safe energy distribution. Circuit breakers of this type are integrated into electrical panels to interrupt excessive current loads and isolate downstream hazards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: ee487c2c-2f59-49a2-8a39-dc23e14feaa5 Italy
- Simplified SCIP: fc10a7bc-64c2-4804-9409-307796b7694b Germany
- Environmental Information: 9AKK10103A1056
- EAN: 8015644555177
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 186 mm
- Product Net Height: 205 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 5.8 kg
- Package Level 1 Units: 1 piece
More info
