> ABB > Molded case "Isomax-Tmax" > T5 > 054441

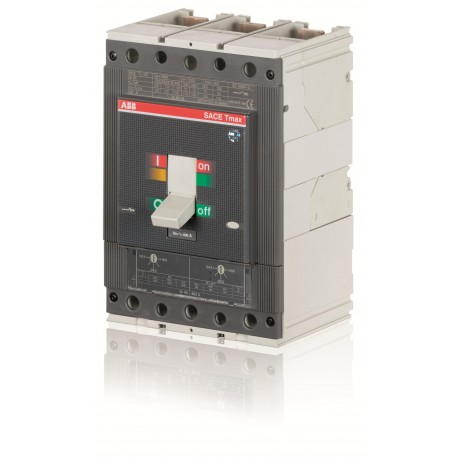

ABB 1SDA054441R1 1SDA054441R1 ABB T5S 400 TMA 400-4000 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA054441R1 ABB T5S 400 TMA 400-4000 3p F F

1SDA054441R1

054441

ABB

1 Pcs.

T5S 400 TMA 400-4000 3p F F T5S400 TMA R400 3P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPb21928e7-063a-4d3e-bfd8-9cb9c05d48e0 Italy
Simplified SCIP870465a2-79e0-4c3e-a2fe-f71b9a332016 France
695a1fd3-7a81-43fd-9706-534fe50591e9 Spain
748e544d-6672-4e49-9937-c8fba8678abe Hungary
7ac019a8-9722-4218-857a-3b0df7a0bb27 France
0bf96440-b0f2-47a9-81b3-54eb75e34f04 Poland
721e66b7-4be1-4f88-b8a1-326bf8a79038 Germany
7c63b63a-ccfa-43f0-8316-e7985bbfa8cf Germany
c01c032b-fcdd-4d15-9bff-d9f033ac0e81 Germany
1dda46ad-fb24-42a5-9391-b46e30b63672 Belgium
679e7dd4-5576-433b-9abf-8a799d22eb07 Denmark
16284b54-dabc-429b-8612-d6d73e233d4a Croatia
fa964584-b68a-4557-bbbf-d0f9d183d18a Sweden
6856c820-3b94-4071-827f-b1e3ee1a814c Norway
447b6092-1687-4ba8-b744-5b4d4466a2ab Belgium
50c48456-0314-470c-9631-155958ee11e7 Greece
e4850d99-742a-447b-bc10-4a3815caeb0c Bulgaria
eaec7e67-bd07-4fd2-92fb-a16971d4c982 Germany
4d34d9ad-f79e-4c62-ad0b-5f8efc6128d1 Sweden
45785dae-9e66-44aa-af64-360a3b2c95fe Czech Republic
8e6466e0-50e1-442c-a350-6ddea17f8ee9 Poland
89a23e7b-1ab5-4a46-91c7-09827da26510 Portugal
07a6cb38-31fb-4ddf-8727-b81cd868232e Estonia
22172b31-b8f2-4f55-97f0-60e6cd3517fe Germany
a2954de1-177c-4edd-8d8c-ea3ec151f18d Finland
ea8faf8e-0164-4fe2-a22c-47ca3c6792f1 Poland
56668147-2784-4d01-92dd-0afef5691a5d Hungary
dae51a5f-fe65-4f16-9237-2fdb88c5ead3 Netherlands
Environmental
Environmental Information9AKK10103A1056
9AKK108467A6707
Ordering
E-Number (Finland)3655295
EAN8015644555450
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight4.502 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight4.8 kg
Package Level 1 EAN8015644555450
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT5
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability7000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 19.5 W
Rated Current (In)400 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 40 kA
(500 V AC) 30 kA
(690 V AC) 25 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 85 kA
(230 V AC) 85 kA
(380 V AC) 50 kA
(400 V AC) 50 kA
(415 V AC) 50 kA
(440 V AC) 40 kA
(500 V AC) 30 kA
(690 V AC) 25 kA
(250 V DC) 2 Poles in Series 50 kA
(500 V DC) 2 Poles in Series 36 kA
(750 V DC) 3 Poles in Series 25 kA
Rated Uninterrupted Current (Iu)400 A
ReleaseTMA
Release TypeTM
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeT5
Terminal Connection TypeFixed Circuit-Breakers
Front
Test Voltage Max (Utest)3500 V
Test Voltage at Industrial Frequency for 1 Minute3500 V
Certificates and Declarations
Data Sheet, Technical Information1SDC210004D0203
Declaration of Conformity - CE9AKK106713A5539
GL Certificate1SDL000163R0062
Instructions and Manuals1SDH000437R0001
Instructions and Manuals (Part 2)ITSCE-RH0100001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
