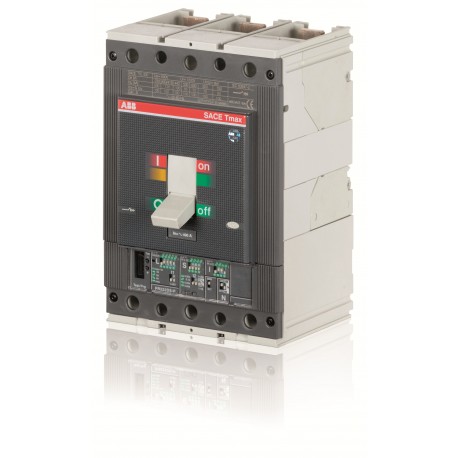

1SDA054337R1 ABB T5S 400 PR222DS/P-LSI In 400 3p F F
1SDA054337R1
054337
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Abb 1SDA054337R1 serves as a dependable molded case circuit breaker designed to safeguard industrial electrical distribution networks. Units of this type interrupt fault currents to prevent equipment damage and ensure safe maintenance procedures.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: c794bc28-044c-4012-a73a-6ec1323ee881 Italy
- Simplified SCIP: f238dfa4-0670-4f47-ab81-ffdc1c11b835 Germany
- Environmental Information: 9AKK10103A1056
- E-Number (Finland): 3655355
- E-Number (Norway): 4384058
- EAN: 8015644554354
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 140 mm
- Product Net Height: 205 mm
- Product Net Depth / Length: 103.5 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | c794bc28-044c-4012-a73a-6ec1323ee881 Italy |
| Simplified SCIP | f238dfa4-0670-4f47-ab81-ffdc1c11b835 Germany |
| 95027418-9d8e-4ebe-80df-150743f39de6 Norway | |
| 66ee0b69-dca1-42b0-b673-f80ec5d97508 Germany | |
| 2dfa0488-cc35-4545-a885-5b0240d2298e France | |
| 3dfc6d6b-f9d8-460d-a1ef-336e09dd5fca Germany | |
| 90698444-26fa-431f-9a9e-777a70623231 Denmark | |
| f25ebfaa-a155-4a49-8568-d5f09cb3c264 Germany | |
| b49fa20d-fa51-4005-8557-ef34f89ba9ba Croatia | |
| dc8f1c3d-6165-452c-8cc6-8d05eb86daf9 Czech Republic | |
| fcf7bdac-286e-4b85-8c0f-3c61b6b733de Poland | |
| a884dbad-b041-40f9-82dd-a342f92b9715 Netherlands | |
| 83ba7fa5-efc7-4159-be6d-7237a6b53f62 Netherlands | |
| 152beb5c-d952-4405-8c00-03875b714ffb Estonia | |
| 8358c090-19e2-4d31-a0f2-84feef9a321c Greece | |
| e6ce2c65-742e-489d-916a-0677b3dd6176 Portugal | |
| 531bc3a6-bd08-4c22-ba68-bfa6e93bfca3 Bulgaria | |
| b98990d7-cd69-4e78-97a3-2843c90308b5 Sweden | |
| a749b241-36f3-4b5c-953a-8dd44f377b59 Poland | |
| 1a73e8e2-1d81-410c-b130-0dce92915a11 France | |
| 5f9efd9f-af3c-47aa-b740-e99658707dcc Sweden | |
| 696d195d-5fc5-4215-8e6b-45b5772bb4f7 Germany | |
| a7d65278-1072-48dc-90e9-302bc79be9fc Netherlands | |
| 67702f68-17ff-496e-884d-a9555a88654b Spain | |
| 6d897ee9-e7b8-41d3-8fbc-19f30f362e71 Netherlands | |
| 8eac19a2-bcff-4297-a3a8-c4312637f028 Poland | |
| 4622a2b5-b5c3-410c-bbf8-091799f4a490 Netherlands | |
| 6108e4a2-2efa-4611-9eb0-cfdf015e199f Finland | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655355 |
| E-Number (Norway) | 4384058 |
| EAN | 8015644554354 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 5.1 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 8015644554354 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 16.5 W |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 40 kA | |
| (500 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 40 kA | |
| (500 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | PR222DS/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| GL Certificate | 1SDL000163R0062 |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| Instructions and Manuals (Part 3) | 1SDH000436R0502 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
