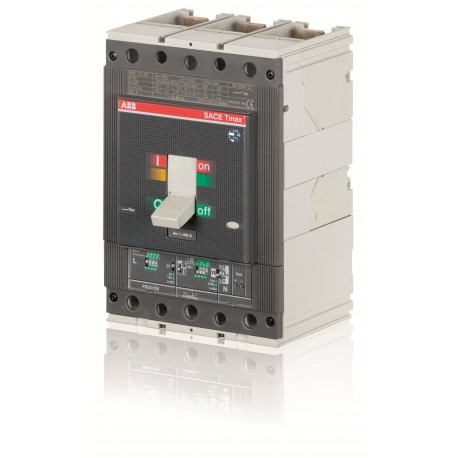

1SDA054333R1 ABB T5S 400 PR221DS-LS/I In 400 3p F F
1SDA054333R1
054333
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for industrial electrical grids, the 1SDA054333R1 ABB circuit breaker acts as a primary defensive barrier against overloads and fault currents. These protective components are standard in manufacturing facilities and commercial buildings to isolate electrical circuits safely during maintenance or emergency events.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 7c045d10-8e03-4414-ab79-e3009f84044c Italy
- Simplified SCIP: 20277617-1f36-43a8-b6c0-3a5e62e05f24 Germany
- Environmental Information: 9AKK10103A1056
- E-Number (Finland): 3655325
- E-Number (Norway): 4384054
- E-Number (Sweden): 3180383
- EAN: 8015644554316
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 140 mm
- Product Net Height: 205 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 7c045d10-8e03-4414-ab79-e3009f84044c Italy |
| Simplified SCIP | 20277617-1f36-43a8-b6c0-3a5e62e05f24 Germany |
| bf9eb4d7-8d78-41a5-9b42-5c869a3b2b2f Germany | |
| 6b9a629b-831b-4a76-b046-e32092a6ba55 Sweden | |
| 24979efa-4a7a-4dcd-bdce-79e83b48cdff France | |
| d554ba54-8a94-419c-97cd-87633359d5a2 Netherlands | |
| 6dc853a3-90fa-4e71-b439-dde23255e4c9 Netherlands | |
| cbe692d1-84d0-4afd-b2b6-5ac4f07c0f59 Spain | |
| 5506b7d9-b9ba-40e8-90fb-8a51e35b5e41 Poland | |
| e1cf3b32-eaf0-49f5-bb9d-8fafa46bbfa2 Netherlands | |
| 00c8d4f7-59b2-4d5a-b465-bd5be1879ecc Finland | |
| 45aa3f50-e72f-4a0c-9241-c8aab0df4b3d Sweden | |
| 662643ca-3b5d-4a24-9e3b-d00650a70c01 Poland | |
| 200c67fb-e5fd-466a-90c3-f3ee38219b01 France | |
| 4b0d553e-ef9c-42a4-9b04-0ba7f1ffb6f2 Germany | |
| d9bdee1c-3401-4c23-bc59-a45f09634719 Germany | |
| 49384911-ce92-4f7c-ab9d-7ac1083782c5 Czech Republic | |
| 4684ad20-2b1a-4c56-a476-9c392081da6e Croatia | |
| beaa7d3e-9efe-485b-a564-57c7ebe30740 Denmark | |
| 38caad91-a665-41fc-ad0c-23274740da0e Germany | |
| 9b04c1b0-ef7a-444c-a765-0666e7b3daf7 Netherlands | |
| 6f1fcc90-eb80-4bc3-9bbb-8f9ed686f97f Netherlands | |
| 1d5c9988-eec6-44ae-91b6-9f1d11a19d02 Poland | |
| 1bff3709-0730-499c-898a-1edd97dbfc6b Greece | |
| dd171885-866a-40b7-848f-ba253ddb6e54 Estonia | |
| 3a381d9c-8d4f-4c34-a0cf-74b5d57938ff Bulgaria | |
| 5a092fab-039b-4c71-b4e2-c7f181b31a42 Portugal | |
| 0a83005f-2261-4808-94bd-5a678d5dacab Norway | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655325 |
| E-Number (Norway) | 4384054 |
| E-Number (Sweden) | 3180383 |
| EAN | 8015644554316 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.824 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 8015644554316 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 16.5 W |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 40 kA | |
| (500 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 85 kA |
| (230 V AC) 85 kA | |
| (380 V AC) 50 kA | |
| (400 V AC) 50 kA | |
| (415 V AC) 50 kA | |
| (440 V AC) 40 kA | |
| (500 V AC) 30 kA | |
| (690 V AC) 25 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| GL Certificate | 1SDL000163R0062 |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
