View larger
Images are for illustrative purposes only. Please refer to data sheet for details

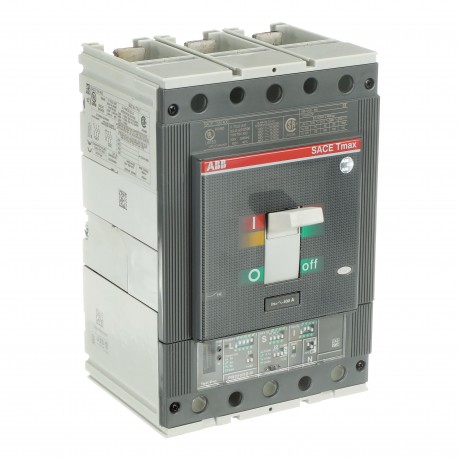

1SDA058153R1 ABB T5N400 PR221DS-LSI R400 3P F F UL
1SDA058153R1
058153
ABB
1 Pcs.
T5N400 PR221DS-LSI R400 3P F F UL
T5N 400 UL/CSA PR222DS/P-LSI 400 3p F F
Automation > Power circuit-breaker for trafo/generator/installation protection
Molded case "Isomax-Tmax"
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | c118b317-f66b-47b1-933a-2fdd3d1a82a2 Italy |
| Simplified SCIP | 5f8b4895-98ae-4547-a91f-a70177510cac France |
| eb860710-6016-4447-815f-022392786a62 Spain | |
| 809e6109-0ed0-4b38-ba2b-2efca277032e Hungary | |
| 54b5bd8e-eb54-42c7-98f5-50573f36efe0 Belgium | |
| 2355a6f7-7ef1-458e-a4f7-1dd7e6900129 Germany | |
| 9269aedd-ad52-4b0d-a483-c8326819a517 Croatia | |
| dea0744f-8ae1-4bc0-b812-dae433bd2496 Germany | |
| faeb9872-6085-4929-b636-8669beeee882 Denmark | |
| 00b136c0-cfe4-435c-a58c-93b37c0c2027 Sweden | |
| 55ee8b45-2489-418a-890e-10f52754428b Germany | |
| ece7a203-f479-4a52-9487-c3a028fcf458 Czech Republic | |
| 5aedecdf-79ea-4d8e-9f4c-839881fc2c54 Poland | |
| 86f61302-1911-445b-92ca-363319d7e269 Poland | |
| 0c51f6e5-718c-466f-9b7a-f0b121cf65cc Bulgaria | |
| f9b64921-a4e8-4284-a254-5b9ab4db625d Germany | |
| aa43ebdc-4cc0-406b-82f8-b3513e6e102c Portugal | |
| e94ab522-3023-4991-a2eb-5d3d874fafbc Norway | |
| 79f85e5e-8299-4694-a7a3-4993cfc37765 Netherlands | |
| b8b4601d-6f73-4f19-8ca4-538e8d12c485 Sweden | |
| cc60191c-412e-4843-b23c-8477ac7331e4 Finland | |
| 366a33ad-491e-4bcc-bb0f-986e30f5ab6a Hungary | |
| 16015ec0-aa92-4f0a-95e1-7334ab4ebd3d Poland | |
| 5b389f5b-b779-431b-a5a9-12feb5bc6a6d Estonia | |
| be39d982-630e-45b0-8da7-bc84729bfe59 Belgium | |
| c49df3eb-d7bb-487b-bfd8-2f46d58eda8f Greece | |
| 56b4f377-e0d7-49c1-933f-b7151c16acd9 Germany | |
| 23ea7b92-f3b8-4287-af9d-3193a1d2a983 France | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| Order Code US and Canada | T5N400CW |
| EAN | 8015644604189 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 5.1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 8015644604189 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 16.5 W |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 600 V AC |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | PR222DS/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | UL |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Technical UL/CSA | |
| Interrupting Rating acc. to UL489 | (240 V AC) 65 kA |
| (480 V AC) 25 kA | |
| (600 V AC) 18 kA | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 9AKK105713A5947 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDC210023D0201 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers |
| UNSPSC | 39121616 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
