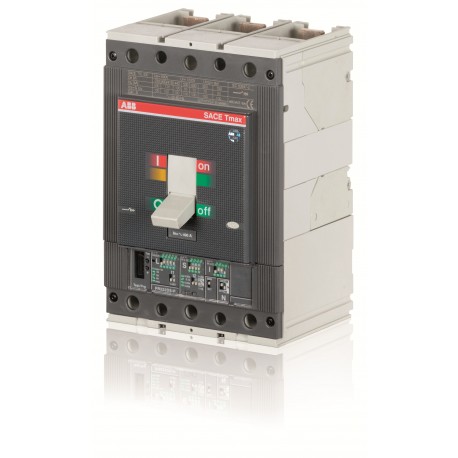

1SDA054398R1 ABB T5N 630 PR222DS/P-LSI In 630 3p F F
1SDA054398R1
054398
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA054398R1 T5N 630 PR222DS/P-LSI In 630 3p F F is a molded case circuit breaker deployed in industrial electrical systems to protect circuits and connected equipment from overcurrent conditions. Circuit breakers of this class are standard components in commercial power distribution panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 94de04c5-c834-42c0-a501-f99a576400e7 China
- Simplified SCIP: c61378c0-d32a-4b61-945d-77fc97c414a0 Germany
- Environmental Information: 9AKK10103A1056
- E-Number (Finland): 3655353
- E-Number (Norway): 4384069
- EAN: 8015644554965
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 140 mm
- Product Net Height: 205 mm
- Product Net Depth / Length: 103.5 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 94de04c5-c834-42c0-a501-f99a576400e7 China |
| Simplified SCIP | c61378c0-d32a-4b61-945d-77fc97c414a0 Germany |
| 3c8f955b-c5d9-4feb-8ae3-62f11666e573 Sweden | |
| 5d2bfd35-af19-4fe0-9864-d4bbfb191979 Spain | |
| 50952f4e-97d5-4b1b-953c-585531436e21 France | |
| c7d60a19-8b69-4ad5-a9cd-b4ec5f5f9f02 Belgium | |
| 24890586-ecc5-4db4-90f3-587e9bd439be Hungary | |
| df7c8929-6471-4e79-8013-3af550699b39 Germany | |
| b0bfd56b-cb2a-4e2c-9f7f-5507036ac296 France | |
| 5a2fcb67-ebbf-48b6-8319-17c3fcc3f380 Greece | |
| 0b6b93fe-b886-459c-9081-17411eae1176 Portugal | |
| c164b8eb-fb9c-48d3-9cfd-150efc6186c2 Bulgaria | |
| 93adef6a-b58a-4f28-8e59-91ea2bbdf35f Sweden | |
| bf162a2c-e075-4d3c-a3b6-137b44241417 Poland | |
| b3149c93-8a72-4646-8746-ce1d553b9e19 Netherlands | |
| 06f91d1b-2489-4382-b49d-0240e2300fc2 Poland | |
| 62ec552e-166d-401b-947f-8e0298565460 Hungary | |
| 0ad385f8-5ce4-4a5b-bb6b-732835105cbf Estonia | |
| 8709ecb5-2d32-49c2-9abe-6c1a005c1f58 Germany | |
| 2178c18f-d82e-4e48-8cca-7429bca43fcc Denmark | |
| bf047ff4-8fb0-42dd-a0ae-10b178299c66 Germany | |
| 0fb0c6b4-9c9b-4b13-ac7e-bbeea4d722e2 Belgium | |
| 7e9f9b97-e93e-48e2-9a20-b877edc08653 Finland | |
| 00d853ec-d390-412c-ad32-b02a3451ceaa Czech Republic | |
| ec2b788e-8b09-41f7-a42a-0ddcbb0a9609 Poland | |
| f52b256f-382a-4303-92c2-03bf08ff785d Norway | |
| 3463bea3-3a84-4ae4-b68e-6033a63907ad Croatia | |
| c457b63c-92e9-4b28-99d9-53dd97cddf62 Germany | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655353 |
| E-Number (Norway) | 4384069 |
| EAN | 8015644554965 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 5.1 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 8015644554965 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 41 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | PR222DS/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| Instructions and Manuals (Part 3) | 1SDH000436R0502 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
