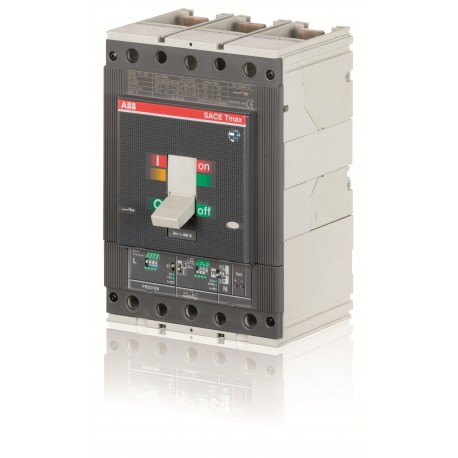

ABB 1SDA054396R1 1SDA054396R1 ABB T5N 630 PR221DS-LS/I In 630 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA054396R1 ABB T5N 630 PR221DS-LS/I In 630 3p F F

1SDA054396R1

054396

ABB

1 Pcs.

T5N 630 PR221DS-LS/I In=630 3p F F T5N630 PR221DS LS/I R630 3P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPb05eee46-ac7c-4986-b103-4456de0f7bf3 Italy
Simplified SCIPa977f2ff-a1c8-4123-8a12-edf8e740a809 Germany
b50cb66e-0fa0-4466-beea-a3d96200a766 Netherlands
7655a3fc-ee55-46bb-9a8c-a91a6d7db03e Spain
8ec5fc74-95a6-45be-bdfc-32c11407fa92 Netherlands
b3e66b09-8949-425f-b245-df78b5fead9e Germany
25def33a-10a4-4e45-9ccc-a96d65b5c9e1 Sweden
355d8eea-bdc0-4103-80d0-dde4e8fd538a France
a1c0933b-8ce1-486f-b55c-b83739d17749 Poland
52808cb7-53d9-4567-b91a-dcbd1efd3ac7 Sweden
0cae59a1-9a0d-4154-9401-e923f4215204 Bulgaria
de7cd5be-ee1a-4a1a-98de-0c8ecf87dc92 Portugal
09d8a2ed-08d2-4791-84f8-84ae2dc70197 Greece
a9a82c36-6b93-471c-b403-1b2d60d25421 Estonia
ef35ae13-5b14-4367-ae05-c480d4a4fb1c Poland
31a1fa2a-9be6-4c5b-8152-8d9c343cc857 Netherlands
2757738b-3e1d-4110-ae81-0e76cd8e6481 Netherlands
230d99e2-75de-4436-bdeb-94b289c97d2d Czech Republic
003d886f-39cc-435e-8485-5dab2fac3fe1 Croatia
b7284998-9321-4095-ad97-d508f687d998 Germany
5208c008-66a2-4f36-a1e2-a0561adf6c54 Denmark
4cd82cce-1d3e-4e20-8214-9aacdcbd57c2 Germany
51fc47bb-bef0-4864-92c1-3f36cc25d242 France
f9db9213-cda5-47cb-9dc6-ae61d4cee6c9 Germany
ad74c881-87ff-4c49-b26b-e2e55e42ae7c Poland
2d5ee082-b7fa-4a5b-a55e-2700ca49848d Netherlands
94ab850b-ee6d-4786-8c9d-1feaf95bd94b Finland
66546424-47f0-4ae8-a814-ead92287e534 Norway
Environmental
Environmental Information9AKK10103A1056
9AKK108467A6707
Ordering
E-Number (Finland)3655323
E-Number (Norway)4383613
E-Number (Sweden)3180374
EAN8015644554941
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight4.817 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight5.1 kg
Package Level 1 EAN8015644554941
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT5
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability5000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 41 W
Rated Current (In)630 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 70 kA
(230 V AC) 70 kA
(380 V AC) 36 kA
(400 V AC) 36 kA
(415 V AC) 36 kA
(440 V AC) 30 kA
(500 V AC) 25 kA
(690 V AC) 20 kA
Rated Uninterrupted Current (Iu)630 A
ReleasePR221DS-LS/I
Release TypeEL
Short-Circuit Performance LevelN
StandardsIEC
Sub-typeT5
Terminal Connection TypeFixed Circuit-Breakers
Front
Test Voltage Max (Utest)3500 V
Test Voltage at Industrial Frequency for 1 Minute3500 V
Certificates and Declarations
Data Sheet, Technical Information1SDC210004D0203
Declaration of Conformity - CE9AKK106713A5539
EU Data Act Compliance Declaration1SDH002560A1001
Instructions and Manuals1SDH000437R0001
Instructions and Manuals (Part 2)ITSCE-RH0100001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
