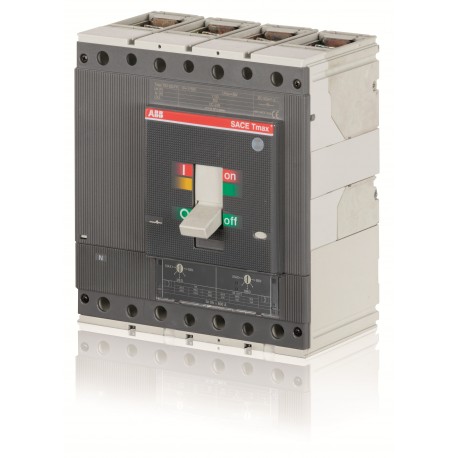

1SDA054478R1 ABB T5N 400 TMA 400-4000 4p F F InN 100%In
1SDA054478R1
054478
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA054478R1 T5N 400 TMA 400-4000 4p F F InN 100%In is a molded case circuit breaker utilized for primary or secondary protection in electrical distribution infrastructure. It safely interrupts fault currents and manages power flows in manufacturing and commercial environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: c6b99936-e846-494b-9b43-7a0f02745fd6 Italy
- Simplified SCIP: f1bf8f11-9a8c-4aae-b16d-4e015be13929 Germany
- Environmental Information: 9AKK10103A1056
- EAN: 8015644555153
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 186 mm
- Product Net Height: 205 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 5.717 kg
- Package Level 1 Units: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | c6b99936-e846-494b-9b43-7a0f02745fd6 Italy |
| Simplified SCIP | f1bf8f11-9a8c-4aae-b16d-4e015be13929 Germany |
| a058a055-bdf9-4a51-8e6d-dab284882e1b Norway | |
| 9d724974-daa7-4bc7-933f-6a0022ee3f22 Finland | |
| a0f3f374-8850-41fc-8f69-b09ad49f4b48 Poland | |
| a15e88e1-896d-4273-a580-a52a99d7ad9f Denmark | |
| ab407d4a-620b-43d5-a73b-cf2cf72a55d5 Netherlands | |
| b16f0e65-f4c5-49a6-9f8e-8e4938eba79e Germany | |
| e8833362-3087-4172-9da8-43712027e0e9 Germany | |
| 8fb93586-7945-44b7-b471-00b931d88674 Croatia | |
| 0715bb8a-a763-4cf3-ab87-585a77d01ca3 Czech Republic | |
| fe2cae09-c414-4907-8801-c3b55a36e6f5 Poland | |
| 9ae659f4-ddeb-4ef6-ad16-7363e060b009 Netherlands | |
| 453be9be-2363-40c2-a062-7a09df23afc5 Netherlands | |
| 49f2e709-3e42-4c1b-901a-0ef02df9bd94 Estonia | |
| fe48c98d-3030-490f-9506-a8f30c497575 Greece | |
| 7440f82e-a329-477b-b088-927568fa2b91 Portugal | |
| c7a2b31d-6036-45d5-9d06-ba396eb51252 Bulgaria | |
| 5a4978ae-d452-49a8-b460-62b92aca0efe Sweden | |
| 3694de43-e829-4047-a1a5-e686a7016e1e Poland | |
| 1304c2c3-77b5-46f9-a893-0e157047cd39 France | |
| b05a4c8f-670c-4348-8d98-7ad1652ecf25 Sweden | |
| 4519e5bc-70c8-4cf3-a394-a9e6e8949e56 Germany | |
| 6a6b1e8f-60bb-4224-aae1-02a229515b31 Germany | |
| fe41dd58-9ee5-4632-8191-a5d3b0533888 France | |
| 76c4342a-37dd-4637-bd37-b3e34f2186dd Netherlands | |
| fc97a6be-652d-47ed-90b9-4192611e9595 Spain | |
| e6313340-bd02-4952-9c5b-3f9e18c1cfe6 Netherlands | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644555153 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 186 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 5.717 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.8 kg |
| Package Level 1 EAN | 8015644555153 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 19.5 W |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| (250 V DC) 2 Poles in Series 36 kA | |
| (500 V DC) 2 Poles in Series 25 kA | |
| (750 V DC) 3 Poles in Series 16 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | TMA |
| Release Type | TM |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
