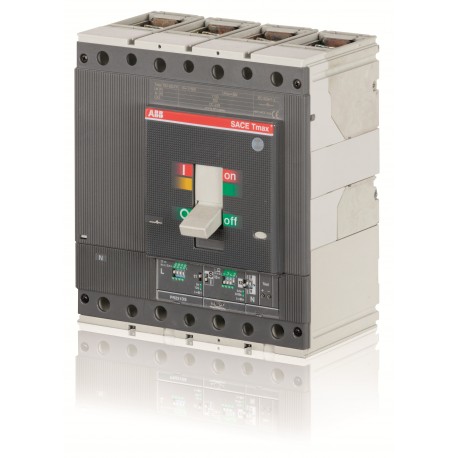

1SDA054325R1 ABB T5N 400 PR221DS-LS/I In 400 4p F F
1SDA054325R1
054325
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA054325R1 circuit-breaker is a multi-pole molded case electrical protection device engineered to isolate faulty sections of industrial power distribution systems. Protective circuit breakers automatically interrupt excessive current flows to safeguard sensitive downstream electronics and wiring from damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 2935b078-1f80-4367-b5a2-a1b9f8cba550 Italy
- Simplified SCIP: 04e0e6c0-6a4b-4df6-ad22-e9177ef011bf Germany
- Environmental Information: 9AKK10103A1056
- E-Number (Finland): 3655337
- E-Number (Norway): 4383611
- E-Number (Sweden): 3180377
- EAN: 8015644554200
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 186 mm
- Product Net Height: 205 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 2935b078-1f80-4367-b5a2-a1b9f8cba550 Italy |
| Simplified SCIP | 04e0e6c0-6a4b-4df6-ad22-e9177ef011bf Germany |
| fc0e6e41-de01-49d5-9d31-6286f7347665 Bulgaria | |
| c48f653d-cda6-4b24-8ec2-803d7db7a693 Sweden | |
| d718fe9a-8963-456d-a784-19aba4bad579 Poland | |
| f91da64b-d2cf-47c7-b5ef-fa8a07436ef8 France | |
| 1bf2e421-6108-430c-a3cb-9bc71d5634eb Sweden | |
| 213a51e0-ed59-405c-8df0-03913368c86c Germany | |
| 0d251d5f-f929-4437-b109-3de4f17e65f3 Netherlands | |
| a6c86426-0807-47d2-8f31-33da5cb4b0a2 Spain | |
| a958aeb5-841b-40ce-b0a8-c1dc5af1900a Netherlands | |
| a3e357fd-0c01-4491-bd84-86bc58af3712 Germany | |
| e0a9c434-216a-490a-be2a-28a6db152f4b France | |
| 523b062e-92b2-4d16-9b63-88a1917bc274 Germany | |
| 412bb1f8-b6da-4300-b24a-c3e493e1bebc Denmark | |
| e1b53a48-8a68-4707-8e0d-5a1a063901f5 Germany | |
| c5a4d480-967b-4bec-88d6-9e90073d2ed6 Croatia | |
| af2f56eb-e845-4aa2-a4ea-c7890f01c0ca Czech Republic | |
| ad272606-3546-4498-8127-932d3d4f70e4 Poland | |
| e2e5cc3d-60cd-46a6-b5ae-8ac5ba8ffca7 Netherlands | |
| ca36c3d4-53c3-41fe-a310-2b54e2fdf02a Netherlands | |
| 3f4131a8-68bf-4fff-b1bb-96155cce16bf Estonia | |
| 0be78355-1640-4e85-a949-46734a79232a Greece | |
| 6fdc8665-8d81-4b8a-a929-65fa3acfa677 Portugal | |
| d536e7ee-7731-42e8-bfbb-f1a0158a8218 Finland | |
| ba3f5112-b4fa-40d9-8421-62a8c2e2caf2 Netherlands | |
| bd12f981-1220-46ec-bdbf-ba4be40878ba Poland | |
| 260906e1-ec8e-460f-b420-b33416132d92 Norway | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655337 |
| E-Number (Norway) | 4383611 |
| E-Number (Sweden) | 3180377 |
| EAN | 8015644554200 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 186 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 6.071 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 6.6 kg |
| Package Level 1 EAN | 8015644554200 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 16.5 W |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
