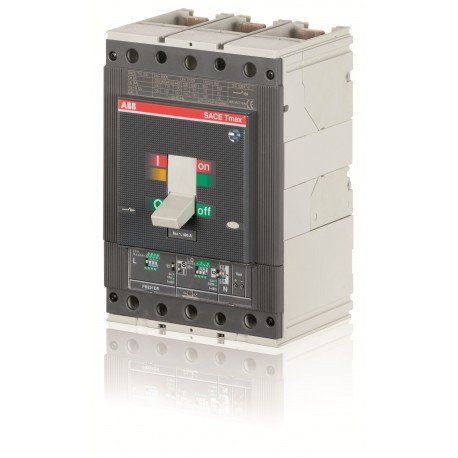

1SDA054317R1 ABB T5N 400 PR221DS-LS/I In 400 3p F F
1SDA054317R1
054317
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for reliable current interruption, the 1SDA054317R1 ABB T5N 400 PR221DS-LS/I In 400 3p F F functions as a standard three-pole molded case circuit breaker in industrial distribution panels. Electrical systems rely on such circuit breakers to interrupt fault currents promptly, preventing damage to conductors, transformers, and connected machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: ffcff8e1-1e15-4045-b110-029e430df21c Italy
- Simplified SCIP: c629b0ae-4ca7-45c9-8467-ed60afa86adb Germany
- Environmental Information: 9AKK10103A1056
- E-Number (Finland): 3655322
- E-Number (Norway): 4383609
- E-Number (Sweden): 3180373
- EAN: 8015644552626
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 140 mm
- Product Net Height: 205 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | ffcff8e1-1e15-4045-b110-029e430df21c Italy |
| Simplified SCIP | c629b0ae-4ca7-45c9-8467-ed60afa86adb Germany |
| 96ff4660-b874-4868-a11a-d96a7025b90f Poland | |
| bb4a903a-50dd-47e5-af58-5ae679840f52 Norway | |
| a6bef035-b65b-4cfa-ba51-170d19ce2de8 Finland | |
| 10aa297b-7b60-4f9f-92df-7cb2b3cb20ce Netherlands | |
| adf4165e-1a2e-43bb-9de3-ae05fac8d3a0 Germany | |
| 48002a16-3784-481e-8dd0-c9fe4c0c231d Denmark | |
| 5819564d-a2c9-4689-a2fd-59815b7d7fb7 Germany | |
| f5485f2d-5b1a-46b2-8398-8e2814299128 Croatia | |
| 88cecd91-7856-4f87-bdaf-36b0a02d4cf8 Czech Republic | |
| ffd4b3e9-98ab-4357-a700-3b47caa89be1 Poland | |
| 9b3abc6c-ff8a-4e0a-9182-cd5e080d022d Netherlands | |
| af120bb3-6de7-40bb-a3d6-2f0b9dd7e86b Netherlands | |
| a87f2e6e-e9fa-403e-a203-4542c7d1007c Estonia | |
| 4dbbfe52-dee3-48b9-9cc6-ffda126592d0 Greece | |
| 00d23e9d-d0a0-4e57-a017-6b46c3f858a0 Portugal | |
| 25b79952-ccfb-4262-904e-11cb0b1fb7d3 Bulgaria | |
| 08bef078-5447-458e-bb82-9387561de0db Sweden | |
| 9d41c0e3-bc2c-4c02-8cbc-465366ba6c95 Poland | |
| f7762064-324e-478f-a895-20aa9e0a2e9a France | |
| 729c8f2d-09a2-45a2-ba8e-753b04e86a51 Sweden | |
| 91632a54-2b31-46b5-8cd0-1d7c42a23379 Germany | |
| b6ceeb76-a7e8-4ef6-b9ca-adb4a9ec937f Germany | |
| 49861b2b-16cf-4ad5-a815-586f51823b2e France | |
| fdda8ad4-fcda-4cfd-8a88-419bdb982a22 Netherlands | |
| 5e57bf17-2af6-495c-8ec6-5f75f0b91d14 Spain | |
| 90381331-9a08-4cef-8e5c-850e9dc9038d Netherlands | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655322 |
| E-Number (Norway) | 4383609 |
| E-Number (Sweden) | 3180373 |
| EAN | 8015644552626 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.841 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 8015644552626 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 7000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 16.5 W |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 5 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 70 kA |
| (230 V AC) 70 kA | |
| (380 V AC) 36 kA | |
| (400 V AC) 36 kA | |
| (415 V AC) 36 kA | |
| (440 V AC) 30 kA | |
| (500 V AC) 25 kA | |
| (690 V AC) 20 kA | |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDH000437R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
