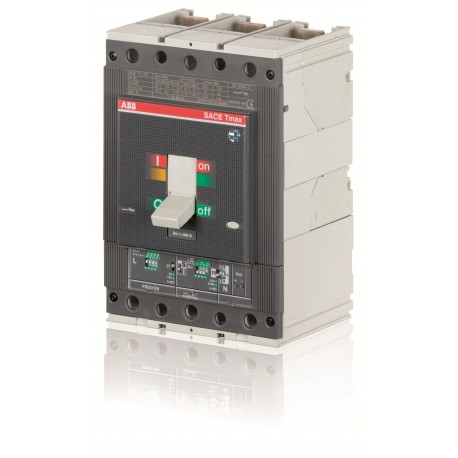

ABB 1SDA054543R1 1SDA054543R1 ABB T5L630 PR221DS-LS/I In630 3p FFC 1000VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA054543R1 ABB T5L630 PR221DS-LS/I In630 3p FFC 1000VAC

1SDA054543R1

054543

ABB

1 Pcs.

T5L630 PR221DS-LS/I In630 3p FFC 1000VAC T5L630 PR221DS LS/I R630 3P F FC 1000V

Automation > Power circuit-breaker for trafo/generator/installation protection
T5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPaaab38a7-814d-46a2-9136-f451983ef26e Italy
Simplified SCIP9e987f04-d038-4f91-aa41-499efe0c5edf Germany
e8a200d8-470a-4c8a-8489-20709ff553aa Denmark
a9dfca9f-a0ce-4c25-9bf7-e4827014a23d Sweden
beee903b-2835-4dc8-96a7-39bde11e3a97 Croatia
7bdfa6ac-46b5-467e-877a-54f77b12c39f Germany
d470b59f-43f5-48ae-a60e-a7aee2887065 Germany
5f0337de-b3ec-4d44-8212-7e0dff0c251a Spain
5cbac660-9f0f-4f8e-a732-8881a1113516 Hungary
212ff891-ec66-4a27-964c-d1db412c9f3c Belgium
3208f3b6-9dea-4b11-bb97-2fabddf3482f France
be3f49df-1de9-4188-96f1-c3b478315642 Portugal
bf6b7f74-d192-48e8-9719-506bb589d29d Germany
442c6f78-036a-428c-9da1-c3d3464e7617 Czech Republic
48e19481-e8b1-4883-bb48-4da12132a6aa Poland
4fd34664-08e4-4e18-879e-de49c1ad0b7d Poland
597185f6-7dd8-40dd-aa98-b4dfb8566d6a Bulgaria
be90f72e-54cd-4110-be82-ec9be470db4b Netherlands
9428edd8-938c-48d5-a9db-2095d1e2d67a Norway
f2dec665-94a7-4f12-97d7-b4559e222244 Poland
1d6dea58-c40d-4339-b565-a3d45734b63f Hungary
1a05a1b7-8b23-419c-87c4-11f6c702180b Finland
3589d5b6-7e6c-4900-b76d-a7d8904492b8 Sweden
5ccc1272-3877-462e-81b1-606bac17308c France
77bc70a4-f918-46cb-a56f-b22683506e64 Greece
3048d40e-eb48-4ac4-a7e1-74ab34081551 Belgium
004104ac-c396-430b-9ad5-a38ea342e063 Estonia
39c61bb9-24f6-4f8c-998e-76b5fca2ac2e Germany
Environmental
Environmental Information9AKK10103A1056
9AKK108467A6707
Ordering
EAN8015644556440
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight5.1 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight5.1 kg
Package Level 1 EAN8015644556440
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT5
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability5000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 41 W
Rated Current (In)630 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1150 V
Rated Operational Voltage1000 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(1000 V AC) 10 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(1000 V AC) 12 kA
Rated Uninterrupted Current (Iu)630 A
ReleasePR221DS-LS/I
Release TypeEL
Short-Circuit Performance LevelL
StandardsIEC
Sub-typeT5
Terminal Connection TypeFixed Circuit-Breakers
Front for Copper Cables
Test Voltage Max (Utest)3500 V
Certificates and Declarations
Data Sheet, Technical Information1SDC210300D0201
Declaration of Conformity - CE9AKK106713A5539
EU Data Act Compliance Declaration1SDH002560A1001
GL Certificate1SDL000163R0062
Instructions and Manuals1SDH000458R0001
Instructions and Manuals (Part 2)ITSCE-RH0100001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA054543R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 630 A
Rated voltage (EF003977) 1000 V
Overload release current setting (EF002336) 252.0 A
Adjustment range short-term delayed short-circuit release (EF007129) 5985 A
Adjustment range undelayed short-circuit release (EF007131) 5985 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20
