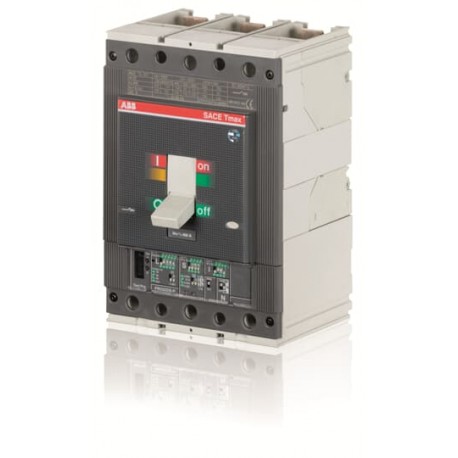

1SDA063479R1 ABB T5L400 PR222DS/P-LSI In320 3p FFC1000VAC

1SDA063479R1

063479

ABB

1 Pcs.

T5L400 PR222DS/P-LSI In320 3p FFC1000VAC T5L400 PR222DS/P LSI R320 3P F FC 1000V

Automation > Power circuit-breaker for trafo/generator/installation protection
T5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB T5L400 PR222DS/P-LSI In320 3p FFC1000VAC is a molded case circuit breaker used for dependable electrical protection in industrial automation and distribution networks. This device safely breaks fault currents to protect downstream equipment and minimize downtime. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK10103A1056
  • EAN: 8015644661113
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 140 mm
  • Product Net Height: 205 mm
  • Product Net Depth / Length: 103.5 mm
  • Product Net Weight: 5.1 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 248 mm
  • Package Level 1 Height: 240 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK10103A1056
9AKK108467A6707
Ordering
EAN8015644661113
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight5.1 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight5.1 kg
Package Level 1 EAN8015644661113
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT5
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability7000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 10.6 W
Rated Current (In)320 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage1000 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(1000 V AC) 10 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(1000 V AC) 12 kA
Rated Uninterrupted Current (Iu)400 A
ReleasePR222DS/P-LSI
Release TypeEL
Short-Circuit Performance LevelL
StandardsIEC
Sub-typeT5
Terminal Connection TypeFixed Circuit-Breakers
Front for Copper Cables
Test Voltage Max (Utest)3500 V
Certificates and Declarations
Data Sheet, Technical Information1SDC210300D0201
Declaration of Conformity - CE9AKK106713A5539
Instructions and Manuals1SDH000458R0001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
