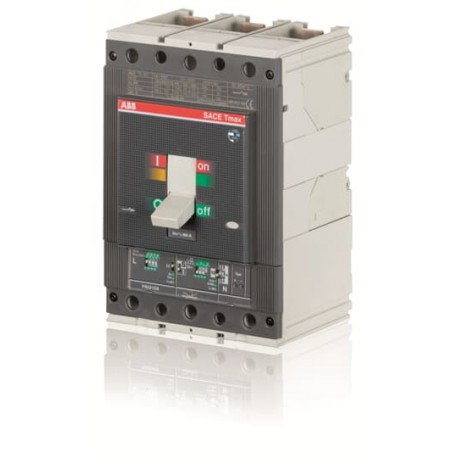

1SDA063477R1 ABB T5L400 PR221DS-LS/I In320 3p FFC 1000VAC

1SDA063477R1

063477

ABB

1 Pcs.

T5L400 PR221DS-LS/I In320 3p FFC 1000VAC T5L400 PR221DS LS/I R320 3P F FC 1000V

Automation > Power circuit-breaker for trafo/generator/installation protection
T5
