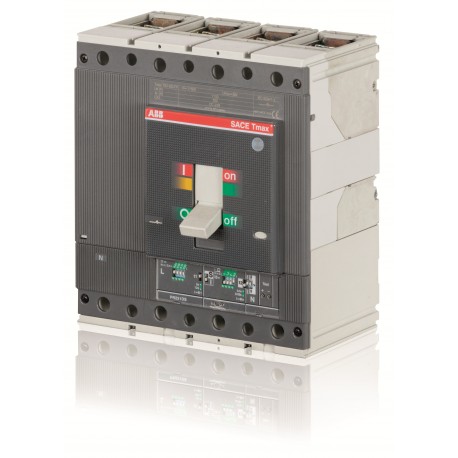

1SDA054424R1 ABB T5L 630 PR221DS-LS/I In 630 4p F F
1SDA054424R1
054424
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA054424R1 ABB T5L 630 PR221DS-LS/I In 630 4p F F molded case circuit breaker protects electrical distribution systems by automatically interrupting high fault currents and preventing circuit overloads. Technicians routinely install such devices in commercial and industrial electrical panels to safeguard sensitive infrastructure and wiring networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 4e71d6c7-05ce-478e-91d5-a0551217d77b China
- Simplified SCIP: e3b8f42a-6134-4148-a915-bc3dcc29afee Denmark
- Environmental Information: 9AKK10103A1056
- E-Number (Finland): 3655347
- EAN: 8015644555283
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 186 mm
- Product Net Height: 205 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 6.082 kg
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 4e71d6c7-05ce-478e-91d5-a0551217d77b China |
| Simplified SCIP | e3b8f42a-6134-4148-a915-bc3dcc29afee Denmark |
| ff6182c8-281d-4b89-825d-75324d2edc99 Sweden | |
| 179c7f7b-9d99-4553-ad19-c7c79d7abd69 Germany | |
| 2cac6039-d4ba-4a3d-86d8-de3b2a32c081 Estonia | |
| 214a01a3-265f-4741-a257-0570d91df96d Estonia | |
| 88692988-5b54-4746-8565-29956bfa680d Netherlands | |
| f3cb5732-6644-4100-bfef-2db79afb4794 Bulgaria | |
| 8b500de4-6b41-4024-ba7b-90c858355ea6 Norway | |
| 6e32fda1-99ec-4204-b31a-01de9b627af1 Sweden | |
| 755d19f0-c399-49cf-91f1-8cf38eeb7917 Poland | |
| 83cfe661-b04d-4bc9-b606-ac0c6c08993e France | |
| d24e163e-144a-4852-bc8b-f5eb786b0142 Belgium | |
| 7f025c8e-bb97-4c9c-9d15-b10faede1241 Poland | |
| 43b9ce1d-caa9-4811-8f00-ac7712139ef5 Hungary | |
| 52c3530e-9e9d-4498-b49a-7780f07fff01 Belgium | |
| 41af4c13-bd2d-48d7-ba3e-e9971d890691 Germany | |
| 8ccbb147-a535-47f2-8c88-cd722c57c97d Croatia | |
| 09ec3426-b8df-45bf-a0a7-1864a8ec2df9 Finland | |
| 617d3be4-e4da-4799-ae6f-1836bcf27832 Czech Republic | |
| 4354940e-e18e-4757-86a2-214704419b80 Greece | |
| f264696e-cfe9-4693-b4d9-68030f236bb4 Poland | |
| d57dd8d4-8451-4140-bbcc-35151a8b586d Germany | |
| 204539ca-fca0-44b2-913d-7e5ad34f88f6 Germany | |
| 45cee7be-e634-41da-b400-8620b077b989 Portugal | |
| 0585c8bd-7ba8-4872-8160-db5c0c8a7d7a Spain | |
| 4ff5d472-5b6b-4aa9-ba36-bc7f5c25dfd7 Germany | |
| 29145d9b-08e7-4b79-a597-79b869e724cb Hungary | |
| 82449fa0-f5b1-4c64-b62a-a8c340bb344a France | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655347 |
| EAN | 8015644555283 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 186 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 6.082 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 6.2 kg |
| Package Level 1 EAN | 8015644555283 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 41 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (400 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 70 kA | |
| (690 V AC) 35 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (400 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (690 V AC) 70 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | L |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| GL Certificate | 1SDL000163R0062 |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
