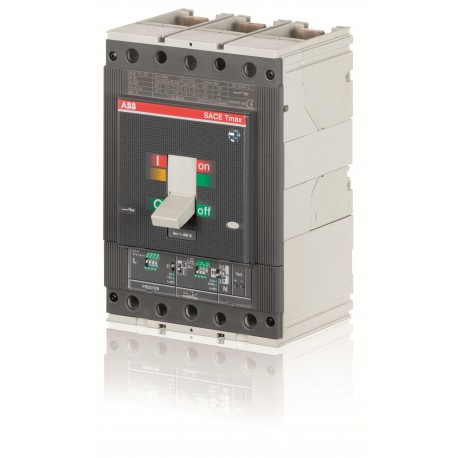

1SDA054420R1 ABB T5L 630 PR221DS-LS/I In 630 3p F F
1SDA054420R1
054420
ABB
1 Pcs.
T5L 630 PR221DS-LS/I In=630 3p F F
T5L630 PR221DS LS/I R630 3P F F
Automation > Power circuit-breaker for trafo/generator/installation protection
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 6c0fc465-af99-4288-8cd9-ad56b383407f Italy (IT) |
| Simplified SCIP | 1cfad374-e68d-40a3-9137-4be8221b6612 Croatia (HR) |
| 42f28e7c-9c84-48a1-a2a0-c73b3ec46b96 Denmark (DK) | |
| d0fe689c-10cf-4e43-bf60-4cae5cefec21 Germany (DE) | |
| c9876678-6597-487a-b0a7-f779ac4ae897 Germany (DE) | |
| 02d26379-97e0-4ec7-bf65-16e4a2d2093c Sweden (SE) | |
| 2f32f39a-2dbb-41a7-a7c4-989ad62f706f Germany (DE) | |
| 0c4fe6f6-5773-4ce2-bb86-d059f88b35c2 Germany (DE) | |
| 840b6cea-4d8e-48ad-a9ae-698ce28160e5 France (FR) | |
| 294e2e5e-f46b-4ab8-b535-ec0620aad392 Hungary (HU) | |
| c013f716-fc54-44f7-999a-0980310676bc Belgium (BE) | |
| 036f9682-6a0f-4daa-ae49-1cc2909a8202 Spain (ES) | |
| f8363635-72d0-46f8-b730-223058b16596 Portugal (PT) | |
| 67aabc84-ed44-4b02-afc0-6f079eb753a9 Czech Republic (CZ) | |
| fa514b84-6d4f-450a-9877-a52d6c51ad96 Germany (DE) | |
| b627696a-8384-4bdf-a907-07719b5e9e31 Poland (PL) | |
| ebedacc9-b36b-4b36-a306-eeba2ab4d04b Netherlands (NL) | |
| 28241d1a-e657-403e-945d-73233c6516c7 Poland (PL) | |
| 9990d356-a01a-44a0-a5ea-263a962c3c6c Norway (NO) | |
| 81059d15-b770-4ccf-b989-c4f82a2bd87f Bulgaria (BG) | |
| a3c7251d-77e0-4d47-87dc-be1115bb62fe Sweden (SE) | |
| 337ce485-115e-4b3a-8262-35379cd1c57f Hungary (HU) | |
| fa7c1022-1f2e-4836-808a-acdb057ae01b Finland (FI) | |
| d80cafa0-34cd-450e-9d06-baf646358dd9 Poland (PL) | |
| c1e60788-f271-49ac-ac55-9f6bf96bb312 France (FR) | |
| d4ff77fa-9f42-410c-beb6-d5543d00122f Belgium (BE) | |
| 1a766141-df4e-4fc3-9c3a-ccaeafac052a Estonia (EE) | |
| b32e86e2-8992-4b29-9fdd-578bd6eeb6cf Greece (GR) | |
| Ordering | |
| E-Number (Finland) | 3655332 |
| EAN | 8015644555245 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 5 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 8015644555245 |
| Additional Information | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3 |
| Power Loss | at Rated Operating Conditions per Pole 41 W |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (400 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 70 kA | |
| (690 V AC) 35 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 200 kA |
| (230 V AC) 200 kA | |
| (380 V AC) 120 kA | |
| (400 V AC) 120 kA | |
| (415 V AC) 120 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 85 kA | |
| (690 V AC) 70 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| RoHS Date | NA |
| Short-Circuit Performance Level | L |
| Standards | IEC |
| Sub-type | T5 |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Version | F |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| GL Certificate | 1SDL000163R0062 |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| Classifications | |
| ETIM 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
