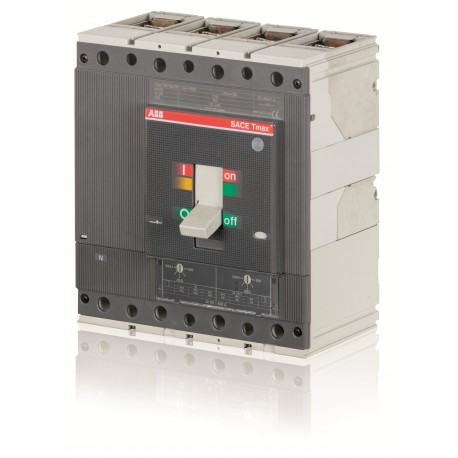

ABB 1SDA054484R1 1SDA054484R1 ABB T5L 400 TMA 400-4000 4p F F InN 100%In View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA054484R1 ABB T5L 400 TMA 400-4000 4p F F InN 100%In

1SDA054484R1

054484

ABB

1 Pcs.

T5L 400 TMA 400-4000 4p F F InN=100%In T5L400 TMA R400 4P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

ABB 1SDA054484R1 circuit-breaker protects electrical distribution grids by interrupting high fault currents and preventing severe equipment damage. Molded case and heavy-duty breakers are deployed in industrial electrical architectures to safeguard sensitive machinery and wiring.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK10103A1056
  • REACH Declaration: 9AKK108466A1425
  • RoHS Information: 9AKK108466A1424
  • RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • EAN: 8015644555818
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 186 mm
  • Product Net Height: 205 mm
  • Product Net Depth / Length: 103.5 mm
  • Product Net Weight: 5.8 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 248 mm
  • Package Level 1 Height: 240 mm

More info

▲
Circular Value
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK10103A1056
9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
EAN8015644555818
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width186 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight5.8 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight5.8 kg
Package Level 1 EAN8015644555818
Additional Information
Electrical Durability7000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles4
Power Lossat Rated Operating Conditions per Pole 19.5 W
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Rated Current (In)400 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 200 kA
(230 V AC) 200 kA
(380 V AC) 120 kA
(400 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(690 V AC) 70 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 200 kA
(230 V AC) 200 kA
(380 V AC) 120 kA
(400 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(690 V AC) 70 kA
(250 V DC) 2 Poles in Series 100 kA
(500 V DC) 2 Poles in Series 70 kA
(750 V DC) 3 Poles in Series 50 kA
Rated Uninterrupted Current (Iu)400 A
ReleaseTMA
Release TypeTM
Short-Circuit Performance LevelL
StandardsIEC
Sub-typeT5
Suitable ForT5
Suitable for Product ClassMoulded Case Circuit Breakers
Terminal Connection TypeFixed Circuit-Breakers
Front
Test Voltage Max (Utest)3500 V
VersionF
Certificates and Declarations
Data Sheet, Technical Information1SDC210004D0203
Declaration of Conformity - CE9AKK106713A5539
GL Certificate1SDL000163R0062
Instructions and Manuals1SDH000437R0001
Classifications
ETIM 7EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 8EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
