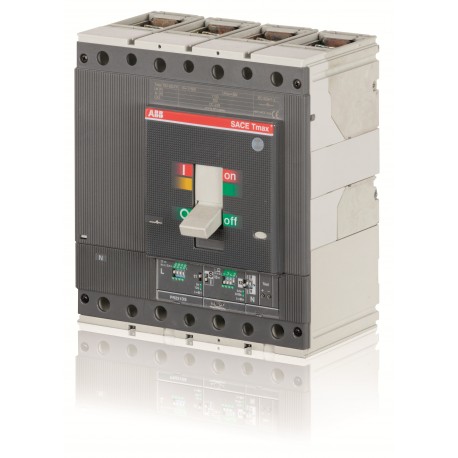

ABB 1SDA054373R1 1SDA054373R1 ABB T5L 400 PR221DS-LS/I In 400 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA054373R1 ABB T5L 400 PR221DS-LS/I In 400 4p F F

1SDA054373R1

054373

ABB

1 Pcs.

T5L 400 PR221DS-LS/I In=400 4p F F T5L400 PR221DS LS/I R400 4P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP4f1013e7-61fb-4530-a7e9-d83d45797faa China
Simplified SCIP69645937-92f8-4579-9a89-4ef953dddac1 Denmark
edc98fa3-f4e5-4f6b-91e9-514ffa756aa0 Sweden
7f07b57f-1ad8-4541-8b29-1408cfa6fd69 Germany
d28a160f-7228-4a02-881b-f07e92151630 Estonia
a95241d0-6844-4418-8ab0-877b9a2e63a3 Netherlands
3bdda7ba-37b4-4936-b310-eb4797cb62fd Bulgaria
814d315b-3088-4d04-b810-840442d97dd4 Norway
843b0fda-1711-4355-955d-a9d3ce35ca07 Sweden
782d9716-07a3-4882-9fd5-a2f2bc13b6ce Poland
b02bbbe8-6688-4cf9-a917-ee27b08f436d France
578c1510-8c82-4b2e-9dfa-6666ee7bb0cb Belgium
028998e5-3917-4c45-a349-3df2cb863760 Poland
6bee12dc-6773-4ac4-9ee3-c693b91f8de2 Hungary
116da532-e1c6-4fcf-ac31-1991d2b4f619 Belgium
7faa58e5-c074-4ed5-a4da-a8dd3c49787b Germany
f6f4f1d6-c867-4923-bdb2-9400ab1670a4 Croatia
f532d1be-2571-40ae-90c2-e80c7de6641f Finland
a04b9b9a-fbef-401c-a946-9762cf39e847 Czech Republic
6d2b8ef0-d77a-4fc4-836d-6c38bf4b86a9 Greece
c8126151-f42d-44eb-850d-e9efaf0426d1 Poland
eba0a6cd-c372-42f7-980d-2d6831d48878 Germany
6df11263-d441-4db4-9c05-5be3d17ff784 Germany
d9b442bc-b17b-48a2-b341-b0bb9912b829 Portugal
0d1a7003-6ee4-4af1-94b1-ee153809ab55 Spain
1cee29e5-b141-42c9-a8a9-2560a0d17593 Germany
6ad438fd-c98d-4b2e-9918-4855c70d9529 Hungary
01e7afd3-5f1a-412b-b5e8-8ea14b86f2e7 France
Environmental
Environmental Information9AKK10103A1056
9AKK108467A6707
Ordering
E-Number (Finland)3655346
EAN8015644554712
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width186 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight6.2 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight6.2 kg
Package Level 1 EAN8015644554712
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT5
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability7000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles4P
Power Lossat Rated Operating Conditions per Pole 16.5 W
Rated Current (In)400 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 200 kA
(230 V AC) 200 kA
(380 V AC) 120 kA
(400 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(690 V AC) 70 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 200 kA
(230 V AC) 200 kA
(380 V AC) 120 kA
(400 V AC) 120 kA
(415 V AC) 120 kA
(440 V AC) 100 kA
(500 V AC) 85 kA
(690 V AC) 70 kA
Rated Uninterrupted Current (Iu)400 A
ReleasePR221DS-LS/I
Release TypeEL
Short-Circuit Performance LevelL
StandardsIEC
Sub-typeT5
Terminal Connection TypeFixed Circuit-Breakers
Front
Test Voltage Max (Utest)3500 V
Test Voltage at Industrial Frequency for 1 Minute3500 V
Certificates and Declarations
Data Sheet, Technical Information1SDC210004D0203
Declaration of Conformity - CE9AKK106713A5539
EU Data Act Compliance Declaration1SDH002560A1001
GL Certificate1SDL000163R0062
Instructions and Manuals1SDH000437R0001
Instructions and Manuals (Part 2)ITSCE-RH0100001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409
