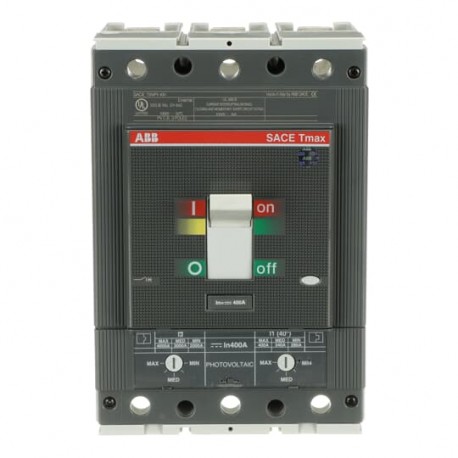

1SDA063462R1 ABB T5L 400 P FP 3p FC Cu 1000V AC
1SDA063462R1
063462
ABB
1 Pcs.
Automation > Chassis part power circuit breaker
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB 1SDA063462R1 ABB T5L 400 P FP 3p FC Cu 1000V AC provides a stable fixed-part base for mounting molded case circuit breakers within heavy industrial electrical panels. These fixed conversion bases allow technicians to install and wire protective switching devices securely while maintaining standardized busbar interfaces. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- EAN: 8015644660864
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 1.5 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 0 mm
- Package Level 1 Height: 0 mm
- Package Level 1 Depth / Length: 0 mm
- Package Level 1 Gross Weight: 1.7 kg
- Product Main Type: Accessories for Tmax T
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| EAN | 8015644660864 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 1.5 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 0 mm |
| Package Level 1 Height | 0 mm |
| Package Level 1 Depth / Length | 0 mm |
| Package Level 1 Gross Weight | 1.7 kg |
| Additional Information | |
| Product Main Type | Accessories for Tmax T |
| Product Name | Accessory |
| Product Type | Fixed Part |
| Version | P |
| Technical | |
| Number of Poles | 3P |
| Rated Operational Voltage | 1000 V AC |
| Rated Uninterrupted Current (Iu) | 400 A |
| Short-Circuit Performance Level | L |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Plug-In Circuit-Breakers |
| Front for Copper Cables | |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210015D0208 |
| 1SDC210300D0201 | |
| Declaration of Conformity - CE | Refer to the EU Declaration of the relative Circuit Breaker |
| Instructions and Manuals | 1SDH000569R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC002043 - Chassis part power circuit breaker |
| ETIM 10 | EC002043 - Chassis part power circuit breaker |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370422 |
