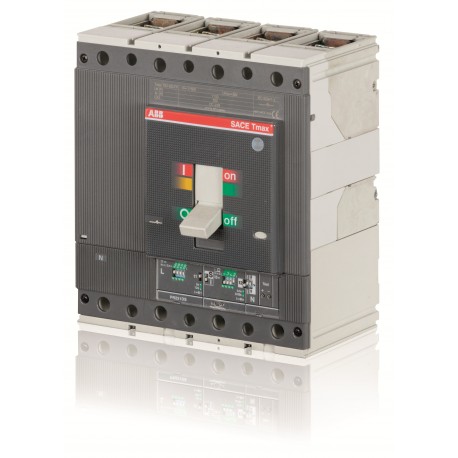

1SDA054416R1 ABB T5H 630 PR221DS-LS/I In 630 4p F F
1SDA054416R1
054416
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB molded case circuit breaker provides essential overcurrent and short-circuit protection for heavy-duty commercial and industrial electrical distribution networks. Technicians install these robust switching devices to protect downstream machinery and ensure safe plant operations.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: f0221c26-4908-4f0b-a09b-aee6b00cf9d4 Italy
- Simplified SCIP: 5f14364b-5c44-4af4-ba1c-508d74b99531 Denmark
- Environmental Information: 9AKK10103A1056
- E-Number (Finland): 3655344
- EAN: 8015644555207
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 186 mm
- Product Net Height: 205 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 6.2 kg
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | f0221c26-4908-4f0b-a09b-aee6b00cf9d4 Italy |
| Simplified SCIP | 5f14364b-5c44-4af4-ba1c-508d74b99531 Denmark |
| 940a9ba2-4312-48e5-b26c-399556b85c80 Sweden | |
| 69acfe9b-f060-47a3-bc40-960bfd21de0d Germany | |
| c32957df-15cf-4873-beeb-07c619df7ddd Estonia | |
| aa618bc7-5db0-456c-8eb3-3b0a57a7839f Netherlands | |
| dd3c52ef-cf81-42d5-9c61-af4d1b69d6e3 Bulgaria | |
| 33136087-686b-44bf-9557-41aff7fd0b56 Norway | |
| c206bd21-a3c7-4880-b0bb-cb6e596f57dc Sweden | |
| 00a383de-f1ad-4593-9846-1dfb2c4486cb Poland | |
| 0ff98294-2053-4474-ab32-8c71a41528a5 France | |
| a82b8df1-88e2-4632-8136-4009fae018a0 Belgium | |
| bfd9a843-eb2e-4e53-8b9e-87bce92da762 Poland | |
| 404689e4-8c91-4138-8c36-8eb89389dcd1 Hungary | |
| 93b84e1b-6056-4d5b-a290-e6760290ebbc Belgium | |
| 889d7ac6-8d7b-456b-a23f-efdb7bd61bc8 Germany | |
| 8bf34d39-954b-4711-a914-422249cc429e Croatia | |
| cd5fbc71-d8ef-453b-8564-1fd09f676267 Finland | |
| ac40cf27-ce5f-4e08-baf6-820c23116780 Czech Republic | |
| dd0e6e3c-4f10-4a2a-892c-8f9f7ff9e464 Greece | |
| b6ef2216-6b13-4db2-bb8a-aa04d9409e26 Poland | |
| 969245a2-5549-4489-82f6-9ddab39fe0a2 Germany | |
| 348c25c9-5cc0-4390-875e-3d656f5c6ab3 Germany | |
| d0812d6d-84df-4d7e-af7c-a7274e0dfe38 Portugal | |
| c9bd38fd-bfc7-4ae1-9975-0609ef31a7a2 Spain | |
| df41f2e4-9915-4cad-a18b-43f45323d7fe Germany | |
| c8e69f97-e221-423d-a634-634c6d39489d Hungary | |
| b3c18d8b-1cc0-4698-b830-6681d9bae391 France | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655344 |
| EAN | 8015644555207 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 186 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 6.2 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 6.2 kg |
| Package Level 1 EAN | 8015644555207 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 5000 cycle |
| 60 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 41 W |
| Rated Current (In) | 630 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (400 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 70 kA | |
| (400 V AC) 70 kA | |
| (415 V AC) 70 kA | |
| (440 V AC) 65 kA | |
| (500 V AC) 50 kA | |
| (690 V AC) 40 kA | |
| Rated Uninterrupted Current (Iu) | 630 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3500 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| GL Certificate | 1SDL000163R0062 |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
