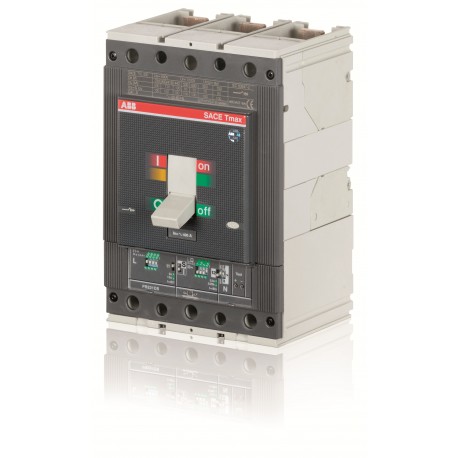

ABB 1SDA054413R1 1SDA054413R1 ABB T5H 630 PR221DS-I In 630 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA054413R1 ABB T5H 630 PR221DS-I In 630 3p F F

1SDA054413R1

054413

ABB

1 Pcs.

T5H 630 PR221DS-I In=630 3p F F T5H630 PR221DS I R630 3P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPeaca4e9a-4d19-4352-bd79-e75900253f48 China
Simplified SCIP43d9b691-207f-48bd-9274-b1e9097d6528 Sweden
d5242eb2-79e7-429c-a93c-36fa6332ab4b Spain
70f24081-9d9b-4058-ad5b-93b019329756 Bulgaria
833a0cef-db31-4ebf-b4a8-9a987c55d14f Germany
4bc374d0-5ef1-4332-8cdc-5604f8820c1e Norway
7d7e4c7b-54ec-4ccc-a42e-3d363f1fbba4 Finland
df850c6d-4ccc-49cc-bf88-3515836413de Netherlands
b446a923-6987-4dc3-a01e-e2908a2f79a3 France
94df097c-42f7-4141-b8ef-964f9396c087 Sweden
82a71482-b8be-4896-8c9d-9d86d98264aa Germany
e8d48e3b-c58b-455b-8d7f-3063061b6ec6 Portugal
f7f7d9eb-fb18-42f1-98ec-a9805f0f2ffc Germany
f555d60f-d6da-4d96-a534-de4a4efabd9b Germany
d0f55968-54eb-48c5-b76f-9d010430b8fb Hungary
93edd9a7-fa2a-4c8d-a8a4-f30d37a4a3c1 Denmark
71043445-9c04-477c-8dae-a87f97b7fb3e Greece
efd22f28-c1b9-4228-8935-3d87fabf7fd1 Germany
0b4b1cb7-a5d0-440d-9b32-e1eafea9209c Poland
8cfb8490-950f-42d7-9e07-d2083cdad115 France
eca98da8-b81d-40b7-8531-ed30c2acb537 Poland
d4591420-ee1a-4c9a-afcb-39d565edef57 Czech Republic
0e33ca43-d6d9-4038-bde8-5ad74851eb98 Poland
a6b21cd9-8134-4278-be7d-a634e1a8b2fa Belgium
Environmental
Environmental Information9AKK10103A1056
9AKK108467A6707
Ordering
E-Number (Finland)3655535
EAN8015644555115
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight5.1 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight5.1 kg
Package Level 1 EAN8015644555115
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT5
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability5000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 41 W
Rated Current (In)630 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(690 V AC) 40 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(690 V AC) 40 kA
Rated Uninterrupted Current (Iu)630 A
ReleasePR221DS-I
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeT5
Terminal Connection TypeFixed Circuit-Breakers
Front
Test Voltage Max (Utest)3500 V
Certificates and Declarations
Data Sheet, Technical Information1SDC210004D0203
Declaration of Conformity - CE9AKK106713A5539
EU Data Act Compliance Declaration1SDH002560A1001
GL Certificate1SDL000163R0062
Instructions and Manuals1SDH000437R0001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
