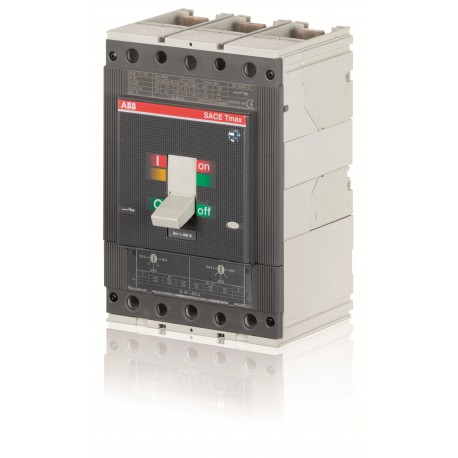

ABB 1SDA054444R1 1SDA054444R1 ABB T5H 400 TMA 320-3200 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA054444R1 ABB T5H 400 TMA 320-3200 3p F F

1SDA054444R1

054444

ABB

1 Pcs.

T5H 400 TMA 320-3200 3p F F T5H400 TMA R320 3P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPddb6ec5a-48eb-4b08-9764-51c7be0dde66 Italy
Simplified SCIPeb3d0bf1-03fa-4ed0-8cd2-70b96dc782f6 Belgium
a78eba7b-1ff3-491a-bff1-218e23eaf487 Hungary
0ecc7078-13af-4fac-8d2f-348926f9d611 Spain
c6b79ace-0c58-477d-b076-b7693d367450 Portugal
9191e9d4-ecb0-40a9-9ead-b257f0a8e152 France
923b595b-2b16-4602-bd6a-b4f11c3fb7f3 Germany
85c5fef2-50a0-4a2b-82ee-312e41636f6c Sweden
9d4e8980-e12f-4834-8164-1a11c791fa62 Germany
ddd9f564-30f7-4821-b337-71f18b6964d2 France
70822038-b29f-4a63-a5a8-85d9247c4434 Poland
c4ec0e5d-4e68-48c6-a534-0eb147caadc5 Germany
5ebe743f-fbdd-42af-8238-89a302720f2f Czech Republic
76ab90b0-68d5-4d6e-8e24-421abf4b6ac5 Croatia
bba3c7ea-cb89-464f-b1d2-6d60ee9b106c Poland
5994c588-2dba-4d73-afe2-2706d20a25b3 Bulgaria
6e5626c4-8f63-4a6f-8647-820a57e170d1 Sweden
137bf84d-cc3b-4598-a9d2-8448391c3ee7 Hungary
daac1faa-3a3d-4b0f-a479-17a3f8d31e30 Greece
bf976f16-da74-410e-b03f-2a797306700d Estonia
d8ebf8f8-26fc-45ff-a0d5-77cbe4df323f Netherlands
50383526-bd33-4c15-97bd-7c96d99057f4 Poland
92a5ada2-53d2-4ac1-bc55-c2eafa37288a Germany
61461ea4-b952-41c8-9841-75f9e633adfa Norway
d050c182-02e4-4897-962c-e3894986ee3f Finland
889a078b-bf73-4ca0-9613-2fc6f027b092 Belgium
6287665b-2e00-4e0b-bbfa-14e119a991ad Germany
e5c8b5ac-04eb-4993-afc1-0988fcd153fa Denmark
Environmental
Environmental Information9AKK10103A1056
9AKK108467A6707
Ordering
E-Number (Finland)3655297
EAN8015644555481
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight4.8 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight4.8 kg
Package Level 1 EAN8015644555481
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT5
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability7000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 13.6 W
Rated Current (In)320 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
750 V DC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(690 V AC) 40 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(690 V AC) 40 kA
(250 V DC) 2 Poles in Series 70 kA
(500 V DC) 2 Poles in Series 50 kA
(750 V DC) 3 Poles in Series 36 kA
Rated Uninterrupted Current (Iu)400 A
ReleaseTMA
Release TypeTM
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeT5
Terminal Connection TypeFixed Circuit-Breakers
Front
Test Voltage Max (Utest)3500 V
Test Voltage at Industrial Frequency for 1 Minute3500 V
Certificates and Declarations
Data Sheet, Technical Information1SDC210004D0203
Declaration of Conformity - CE9AKK106713A5539
Instructions and Manuals1SDH000437R0001
Instructions and Manuals (Part 2)ITSCE-RH0100001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
