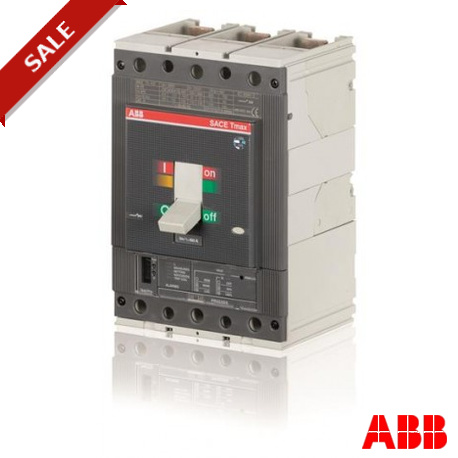

T5H400 1SDA059543R1 ABB T5H 400 PR223DS In 400A 3p F F
T5H400
1SDA059543R1
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Abb automatic circuit breaker (T5H400) serves as an essential protective device that interrupts high fault currents in industrial power distribution panels. It helps prevent catastrophic electrical failures and shields sensitive connected hardware. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Electrical Durability: 7000 cycle 60 cycles per hour
- Mechanical Durability: 20000 cycle 120 cycles per hour
- Number of Poles: 3
- Power Loss: at Rated Operating Conditions per Pole 16,5 W
- Product Main Type: SACE Tmax T
- Product Name: Automatic Circuit Breaker
- Product Type: CB
- Rated Current (I n ): 400 A
- Rated Impulse Withstand Voltage (U imp ): 8 kV
- Rated Insulation Voltage (U i ): 1000 V
- Rated Operational Voltage: 690 V AC 750 V DC
- Rated Short-time Withstand Current (I cw ): for 1 s 5 A
- Rated Uninterrupted Current (I u ): 400 A
- Release Type: EL
- Standards: IEC 60947
- Sub-type: T5
More info
▲C.BREAKER TMAX T5H 400 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC PR223DS R 400
Ordering
- EAN:
- 8015644619510
- Minimum Order Quantity:
- 1 piece
- Customs Tariff Number:
- 85362090
Dimensions
- Product Net Width:
- 140mm
- Product Net Height:
- 205mm
- Product Net Depth:
- 103.5mm
- Product Net Weight:
- 5.1kg
Container Information
- Package Level 1 Units:
- 1 piece
- Package Level 1 Width:
- 228 mm
- Package Level 1 Height:
- 228 mm
- Package Level 1 Length:
- 286 mm
- Package Level 1 Gross Weight:
- 5.1 kg
- Package Level 1 EAN:
- 8015644619510
Additional Information
- Electrical Durability:
- 7000 cycle
60 cycles per hour
- Mechanical Durability:
- 20000 cycle
120 cycles per hour
- Number of Poles:
- 3
- Power Loss:
- at Rated Operating Conditions per Pole 16,5 W
- Product Main Type:
- SACE Tmax T
- Product Name:
- Automatic Circuit Breaker
- Product Type:
- CB
- Rated Current (In):
- 400 A
- Rated Impulse Withstand Voltage (Uimp):
- 8 kV
- Rated Insulation Voltage (Ui):
- 1000 V
- Rated Operational Voltage:
- 690 V AC
750 V DC
- Rated Service Short-Circuit Breaking Capacity (Ics):
- (220 V AC) 150 kA
(230 V AC) 150 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(690 V AC) 40 kA
- Rated Short-time Withstand Current (Icw):
- for 1 s 5 A
- Rated Ultimate Short-Circuit Breaking Capacity (Icu):
- (220 V AC) 10 kA
(230 V AC) 10 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(690 V AC) 40 kA
(250 V DC) 2 Poles in Series 70 kA
(500 V DC) 2 Poles in Series 50 kA
(750 V DC) 3 Poles in Series 36 kA
- Rated Uninterrupted Current (Iu):
- 400 A
- Release Type:
- EL
- Standards:
- IEC 60947
- Sub-type:
- T5
- Terminal Connection Type:
- Fixed Circuit-Breakers
Front
- Test Voltage Max (Utest):
- 3500 V
- Version:
- F
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- 1SDC210023D0201
- Declaration of Conformity - CE:
- 1SDL000165R0005
- GL Certificate:
- 1SDL000163R0062
Classifications
- ETIM 4:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- ETIM 5:
- EC000228 - Power circuit-breaker for trafo/generator/installation prot.
- Object Classification Code:
- Q
- UNSPSC:
- 39121100
