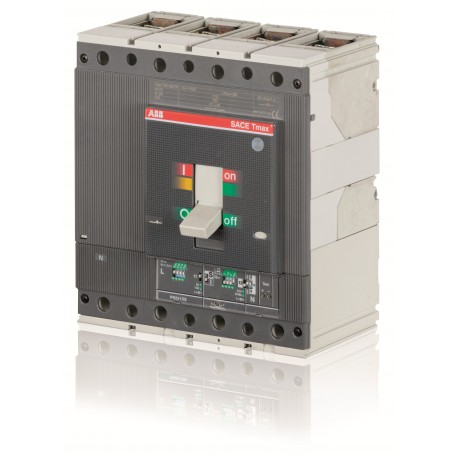

ABB 1SDA054357R1 1SDA054357R1 ABB T5H 400 PR221DS-LS/I In 400 4p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA054357R1 ABB T5H 400 PR221DS-LS/I In 400 4p F F

1SDA054357R1

054357

ABB

1 Pcs.

T5H 400 PR221DS-LS/I In=400 4p F F T5H400 PR221DS LS/I R400 4P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPde9d49a9-9a63-49f2-89a9-f3bf1cfcca0f China
Simplified SCIP6e5fb81d-92c8-472a-aefd-d60c85f74757 Belgium
51bcf755-e6b1-424a-8b8a-3416c3eeedae Greece
ed86c571-a7a2-429b-8ab9-ea06f08ad9b5 Sweden
82cdc666-1258-49d8-8774-37d61029f101 Germany
709a37f5-9fa5-4a15-9584-f98ad402bd0d Germany
c2c72544-b6e5-4e3b-9f36-5d7e2ac737f0 France
913034f7-8e61-483f-91bb-a71161a86f5a Netherlands
00550dce-026f-4982-b5df-acd0daf31d54 Poland
a17ea886-9aca-40c6-adb4-fc4941887ee5 France
3612e551-f7fa-4f9e-b3f9-f0a96a69656d Bulgaria
47c2f53b-b83f-4a98-a7aa-90a7ffc230e2 Spain
121fa231-179f-4039-afaa-523d5ab6e91c Sweden
d406f85d-d2a4-404e-a041-45196a4a8dc8 Poland
d336c338-af78-4ecf-bd3e-21559661542c Germany
68bf15fc-63db-441a-bf82-67204ab852a0 Germany
03c79c2d-e7ac-4373-a427-a2b574823bd9 Denmark
0e6e61d2-7492-49e6-a369-15973d089254 Czech Republic
8d7aa88c-d6e1-4521-9470-47a750612cfb Poland
4d91de62-1e4d-44bd-9ec3-c74c721e4744 Hungary
10f21248-b108-4ce7-898e-22afb63c29c1 Portugal
6ea7cbe7-5f1f-435e-99d7-aa31c59ae810 Norway
477eb1b3-e729-407b-997c-7a8b15bcedd0 Finland
700583f3-f963-4267-bd8f-1169777fdd93 Germany
Environmental
Environmental Information9AKK10103A1056
9AKK108467A6707
Ordering
E-Number (Finland)3655343
EAN8015644554552
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width186 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight6.2 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight6.2 kg
Package Level 1 EAN8015644554552
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT5
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability7000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles4P
Power Lossat Rated Operating Conditions per Pole 16.5 W
Rated Current (In)400 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(690 V AC) 40 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(690 V AC) 40 kA
Rated Uninterrupted Current (Iu)400 A
ReleasePR221DS-LS/I
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeT5
Terminal Connection TypeFixed Circuit-Breakers
Front
Test Voltage Max (Utest)3500 V
Test Voltage at Industrial Frequency for 1 Minute3500 V
Certificates and Declarations
Data Sheet, Technical Information1SDC210004D0203
Declaration of Conformity - CE9AKK106713A5539
EU Data Act Compliance Declaration1SDH002560A1001
GL Certificate1SDL000163R0062
Instructions and Manuals1SDH000437R0001
Instructions and Manuals (Part 2)ITSCE-RH0100001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
