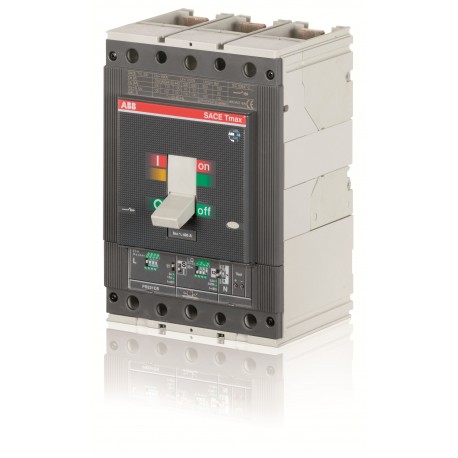

ABB 1SDA054351R1 1SDA054351R1 ABB T5H 400 PR221DS-I In 400 3p F F View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA054351R1 ABB T5H 400 PR221DS-I In 400 3p F F

1SDA054351R1

054351

ABB

1 Pcs.

T5H 400 PR221DS-I In=400 3p F F T5H400 PR221DS I R400 3P F F

Automation > Power circuit-breaker for trafo/generator/installation protection
T5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPdd6c0469-ace0-418d-be84-2f03d77b0167 China
Simplified SCIP6190dca1-bd72-4ecf-bddb-8ab4b32e5b77 Sweden
cc03e62e-43c5-4ee0-b2a9-b2d243e9a4bc Czech Republic
5d465f2e-663b-4c74-8365-1c06cc0fe860 Netherlands
af73daa0-dc7b-4fe4-815f-34701a5fcc9b Spain
221f1606-9dc7-4e50-acc1-eda8caf09412 France
1ad79a37-bfc8-4787-b470-e4641e9d2fb5 Sweden
b092c15f-2aaa-4390-adb2-6075aac029b7 Germany
9961a430-0e27-4a28-8eee-bfa825cdba62 Poland
edbe9de8-ed4a-4f0d-a712-9c812c6c3149 Portugal
694b34aa-3e4b-40bf-955c-2d1bb9af1cbc Hungary
416c29b4-4eb6-4734-b47d-25ddef7a421a Germany
a4bc1bb0-621b-4d17-b862-0b6c5016bf42 Germany
6a9c5021-94e3-4792-ab2c-acf6553d2fa8 Poland
714ae25f-cbd9-4580-8c16-de8b1063fff6 Bulgaria
319763b0-ca79-4de0-b129-4a9a1004a38d Belgium
f354698b-fbff-4ecb-855b-28e8eaf62e17 Finland
18e12b08-fe67-487c-8d3b-5fc3b3673830 Poland
8b3d7f88-c047-4cec-a482-4bd93bac08fb France
1e7086da-d585-4af4-b120-9085bc019f00 Germany
b880effa-3362-4897-8e24-874d2a0cf4d4 Denmark
280d7cef-13e1-4f13-b596-d89f5bcd6bfc Norway
ed10445e-6c38-4d84-a0c9-3f94e37c442e Greece
e13d9c79-605b-4b18-98cc-28be516ded43 Germany
Environmental
Environmental Information9AKK10103A1056
9AKK108467A6707
Ordering
E-Number (Finland)3655534
EAN8015644554491
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width140 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight5.1 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight5.1 kg
Package Level 1 EAN8015644554491
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT5
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability7000 cycle
60 cycles per hour
Mechanical Durability20000 cycle
120 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 16.5 W
Rated Current (In)400 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(690 V AC) 40 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 5 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 70 kA
(400 V AC) 70 kA
(415 V AC) 70 kA
(440 V AC) 65 kA
(500 V AC) 50 kA
(690 V AC) 40 kA
Rated Uninterrupted Current (Iu)400 A
ReleasePR221DS-I
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeT5
Terminal Connection TypeFixed Circuit-Breakers
Front
Test Voltage Max (Utest)3500 V
Test Voltage at Industrial Frequency for 1 Minute3500 V
Certificates and Declarations
Data Sheet, Technical Information1SDC210004D0203
Declaration of Conformity - CE9AKK106713A5539
EU Data Act Compliance Declaration1SDH002560A1001
GL Certificate1SDL000163R0062
Instructions and Manuals1SDH000437R0001
Instructions and Manuals (Part 2)ITSCE-RH0100001
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
