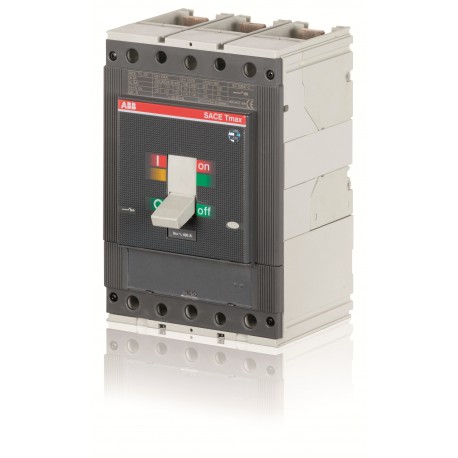

1SDA054601R1 ABB T5D 630 3p F F
1SDA054601R1
054601
ABB
1 Pcs.
T5D 630 3p F F
T5D630 3P F F
Connectors > Switch disconnector
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 1fdc593c-e498-4bfe-afc0-e0ed9c1122af Italy |
| Simplified SCIP | 10db32a5-70f3-4cae-8d54-8495976cb8cb Germany |
| b165941e-51ab-4239-9fc5-ee48f0c9fae4 Poland | |
| 3a5a5b6a-5983-4da6-8b69-eaf0947dc165 Germany | |
| e87f90ee-d4cb-40a2-9528-2500796ada6c Norway | |
| 4259d9a1-1aae-4ee0-b0c5-7cda50e4e643 Finland | |
| 548eebc7-f802-4941-a5ca-030463f4dade Denmark | |
| 48244e27-964d-42d8-bea3-4cb32325bd3f Greece | |
| 4db5401f-03a1-4259-8366-4638e79ef561 Bulgaria | |
| 84e42664-daf9-4cb7-aaf2-0dc73e564183 Netherlands | |
| 6a96e2e0-9629-4727-bdcf-28562b26683f Germany | |
| e3e7e710-2be2-4971-a794-f0159820c05a Germany | |
| 0b44202b-b1ae-4dc3-8b9b-7dcb4a413ab8 Croatia | |
| d6dae9c3-7eed-437b-ad5c-6274ade8f77d Czech Republic | |
| a17f0b1f-80ba-4793-8b81-2398539189aa Poland | |
| 23009673-c4b0-459d-a9ad-f89336ebb7e4 Netherlands | |
| 0e11b245-e027-492e-afaf-2177ba2d02fb Netherlands | |
| dce2cc52-def2-436d-af6f-3712fd8f539a Estonia | |
| de84e64e-1633-4bf0-a0de-42938fd5b505 Portugal | |
| 2465f06c-973e-4f43-bf9d-43314b76825b Sweden | |
| 51dab352-11d8-4ab0-9049-624a6e8fc96e Poland | |
| 36bcc96b-1ad4-4158-bc73-61101d037450 France | |
| 66b8db6d-5a1e-44bf-8907-e468389d718c Sweden | |
| 14388075-4bcd-43e2-8d01-737c41cd450b Germany | |
| c9c11825-054b-44db-a623-4fea3b191a5c France | |
| 381ff290-0419-42f8-9b4f-b980a619f420 Netherlands | |
| 1aec8987-71c4-43bb-bbf1-c1e36e7f6147 Spain | |
| 0d02963b-0754-418e-a2ca-47cdb7e656ee Netherlands | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655615 |
| E-Number (Norway) | 4383619 |
| EAN | 8015644556990 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 3.25 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 4.585 kg |
| Package Level 1 EAN | 8015644556990 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 41 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 6 kA |
| Rated Uninterrupted Current (Iu) | 630 A |
| Short-Circuit Performance Level | D |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3000 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3000 V |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
