View larger
Images are for illustrative purposes only. Please refer to data sheet for details

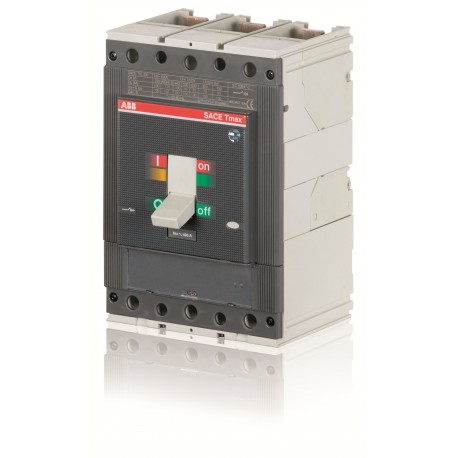

1SDA054599R1 ABB T5D 400 3p F F
1SDA054599R1
054599
ABB
1 Pcs.
T5D 400 3p F F
T5D400 3P F F
Connectors > Switch disconnector
T5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 3a155678-128e-49f8-8288-802c23ae6159 Italy |
| Simplified SCIP | d5496f97-7048-4464-abf4-27e3ecdfd600 Germany |
| 7a2b463c-b131-4d3a-8c87-7081a16d9cfe Poland | |
| 7401cc63-fa85-43b5-a79c-549d3960c1ea Norway | |
| 643e7965-9057-4dbb-a0cf-49fa81b24340 Greece | |
| 6ef7a8c3-e1db-4be2-b204-b00d91b599d6 Germany | |
| f1279a38-90a3-4a0d-80e7-5a39625336bb Netherlands | |
| 71cdea13-c0de-4927-aa8a-1e246ed4a3f2 Germany | |
| 1db8fc72-1b9f-45ea-9660-ecc8c0fac625 Bulgaria | |
| 061f4998-cf6e-4f3e-bfdd-ef806eeae4b7 Germany | |
| c836e3bc-f611-465c-95ce-649fb648edc5 Croatia | |
| c9dbe0b1-8447-42a6-9fa9-2844b2dc2a08 Netherlands | |
| 792bcf0c-f5ec-4b0f-8791-55a7998030bf Finland | |
| 20ae6b77-ba3e-4075-8da7-509850c5c9be France | |
| 8a325227-08e1-4fd6-85af-a806fd813217 Poland | |
| eebfa5df-6b34-4050-b406-70ab328ac5d6 Sweden | |
| 305d187c-6dc2-4e71-b80b-56445585ae2e Netherlands | |
| d150dd98-cf1a-4354-babf-1b9b2d45e19f Poland | |
| fb22339d-2eb0-41fd-9489-3ca15651cd7b Czech Republic | |
| 095ae62a-b8a9-4238-b61b-146f3e398661 Estonia | |
| 9c1f20cb-21fa-4c23-abbe-699c48386f0f Portugal | |
| 1994b35c-122f-4815-8f5a-4e8d48a1f655 Denmark | |
| 328815d0-d209-4976-a920-17528e0de5c5 Sweden | |
| 58757622-a7f2-4b87-8a16-ff9e0cdaee31 France | |
| 68541c78-c8bc-4188-8f65-0a44b2a042e2 Germany | |
| eb8cdaf9-b8ba-4255-9d6a-ef7b127cc204 Netherlands | |
| 354183ae-308b-4928-8197-23d83e7b4b61 Spain | |
| abadb034-14e6-4477-a190-ab48bbd9a06e Netherlands | |
| Environmental | |
| Environmental Information | 9AKK10103A1056 |
| 9AKK108467A6707 | |
| Ordering | |
| E-Number (Finland) | 3655613 |
| E-Number (Norway) | 4383617 |
| EAN | 8015644556976 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 3.25 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 4.53 kg |
| Package Level 1 EAN | 8015644556976 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Switch Disconnector |
| Suitable For | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Mechanical Durability | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 16.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 6 A |
| Rated Uninterrupted Current (Iu) | 400 A |
| Short-Circuit Performance Level | D |
| Standards | IEC |
| Sub-type | T5 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest) | 3000 V |
| Test Voltage at Industrial Frequency for 1 Minute | 3000 V |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC210004D0203 |
| Declaration of Conformity - CE | 9AKK106713A5539 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Instructions and Manuals | 1SDH000437R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
