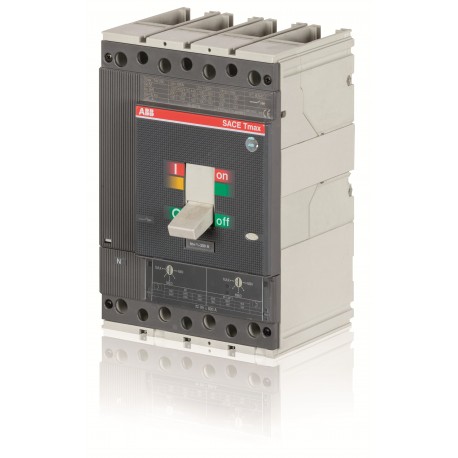

1SDA054504R1 ABB T4V250 TMA250-2500 4pFFC1150VAC/DC N100%
1SDA054504R1
054504
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for versatile system protection, the ABB T4V250 TMA250-2500 4pFF circuit breaker utilizes thermal-magnetic trip units to disconnect circuits safely during overloads or short-circuit events. These four-pole devices find widespread application in industrial electrical panels requiring reliable fault interruption across alternating and direct current networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK10103A1057
- EAN: 8015644556068
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85352100
- Product Net Width: 140 mm
- Product Net Height: 205 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 3.05 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 248 mm
- Package Level 1 Height: 240 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK10103A1057 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644556068 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85352100 |
| Dimensions | |
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 3.05 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 3.5 kg |
| Package Level 1 EAN | 8015644556068 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Version | F |
| Technical | |
| Electrical Durability | 8000 cycle |
| 120 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 240 cycles per hour | |
| Number of Poles | 4P |
| Power Loss | at Rated Operating Conditions per Pole 13.7 W |
| Rated Current (In) | 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 1150 V AC |
| 1000 V DC | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (1000 V AC) 12 kA |
| (1150 V AC) 6 kA | |
| (1000 V DC) 20 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (1000 V AC) 20 kA |
| (1150 V AC) 12 kA | |
| (1000 V DC) 40 kA | |
| Rated Uninterrupted Current (Iu) | 250 A |
| Release | TMA |
| Release Type | TM |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | T4 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front for Copper Cables | |
| Test Voltage Max (Utest) | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210300D0201 |
| Declaration of Conformity - CE | 9AKK106713A5540 |
| GL Certificate | 1SDL000163R0061 |
| Instructions and Manuals | 1SDH000457R0001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4927 >> Molded case circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121616 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
