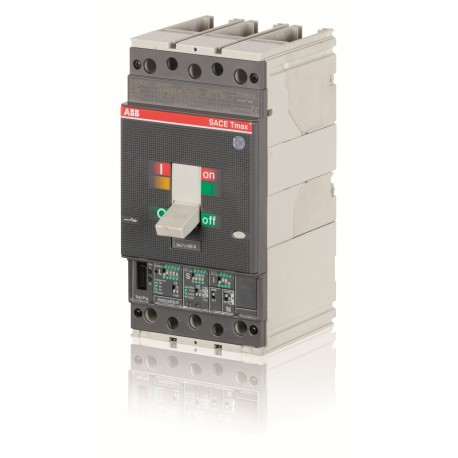

ABB 1SDA054515R1 1SDA054515R1 ABB T4V250 PR222DS/P-LSI In100 3p FFC1150VAC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA054515R1 ABB T4V250 PR222DS/P-LSI In100 3p FFC1150VAC

1SDA054515R1

054515

ABB

1 Pcs.

T4V250 PR222DS/P-LSI In100 3p FFC1150VAC T4V250 PR222DS/P LSI R100 3P F FC 1000V

Automation > Power circuit-breaker for trafo/generator/installation protection
T4

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP1a64c89f-5622-49c4-be1b-d7ac8918cc3f China
Simplified SCIP9726e763-7679-44ac-9500-a50d9510418d Greece
00da7a70-6734-4612-9957-22dc26d9261d Finland
7d14687b-83b3-417d-9499-0076b68cb126 Bulgaria
b88b66c1-1442-4a8c-9b1e-ee859e0e296f Sweden
80dd9599-563e-4533-8239-f759f2cc1bb7 Norway
2913e0d7-a8c2-405d-a62a-606659b86cce Portugal
6ef9fab5-8694-4dc6-b7e2-65bf77a6b399 Belgium
83f4d476-715a-4ad6-a5ad-0f0809c47d17 Germany
a9e4b19d-763b-4dd7-8e07-e88b89dac3cc Czech Republic
6ddd49af-de43-40d9-8ca8-544e08638a74 Germany
99d17918-f0b2-48af-beac-10a495de7346 Denmark
eb86de2c-13ea-4bb6-a31a-7c2bba683b9c Poland
a0ddc7f6-9c56-48ea-9a8e-dc98dff807e2 Estonia
238c3d76-408d-4eb1-9554-17267cedd0db Netherlands
2e69bf1a-7152-4ff6-aea8-ffaa29a6c0b3 Croatia
3f60d62d-353a-4b10-b4a1-d8ff7cd8b9af Hungary
edd211b7-c446-44a4-af8f-0181a9322b2a Germany
fbde277c-9730-4b2f-831d-c505dd1bc67b Poland
6dbc3817-30f2-4996-9495-29490e0442a2 Germany
9cca6b53-886a-4bb4-8dd7-506ea414c5a5 France
4361778f-6f3b-4a78-abf2-2d6f00e4fd31 Sweden
f3f05818-8f43-42ff-bfa9-76a656fbae1c Germany
bc02489f-17b7-4e3e-a1e8-4596adb7edb4 Hungary
cfc19967-ce02-4dd2-b8e2-4520881879f6 France
045eca07-75ed-44a2-a5a3-b3388c10d011 Spain
e2b4217e-0234-4afb-b2ea-2859098138ee Belgium
d272fd6e-8b14-41eb-bc37-438b0e02afd9 Poland
Environmental
Environmental Information9AKK10103A1057
9AKK108467A6707
Ordering
EAN8015644556174
Minimum Order Quantity1 piece
Customs Tariff Number85352100
Dimensions
Product Net Width105 mm
Product Net Height205 mm
Product Net Depth / Length103.5 mm
Product Net Weight3.5 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width248 mm
Package Level 1 Height240 mm
Package Level 1 Depth / Length285 mm
Package Level 1 Gross Weight3.5 kg
Package Level 1 EAN8015644556174
Additional Information
Product Main TypeSACE Tmax T
Product NameMoulded Case Circuit Breaker
Product TypeAutomatic Circuit Breaker
Suitable ForT4
Suitable for Product ClassMoulded Case Circuit Breakers
VersionF
Technical
Electrical Durability8000 cycle
120 cycles per hour
Mechanical Durability20000 cycle
240 cycles per hour
Number of Poles3P
Power Lossat Rated Operating Conditions per Pole 1.7 W
Rated Current (In)100 A
Rated Impulse Withstand Voltage (Uimp)8 kV
Rated Insulation Voltage (Ui)1150 V
Rated Operational Voltage1150 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(1000 V AC) 12 kA
(1150 V AC) 6 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(1000 V AC) 20 kA
(1150 V AC) 12 kA
Rated Uninterrupted Current (Iu)250 A
ReleasePR222DS/P-LSI
Release TypeEL
Short-Circuit Performance LevelV
StandardsIEC
Sub-typeT4
Terminal Connection TypeFixed Circuit-Breakers
Front for Copper Cables
Test Voltage Max (Utest)3500 V
Certificates and Declarations
Data Sheet, Technical Information1SDC210300D0201
Declaration of Conformity - CE9AKK106713A5540
EU Data Act Compliance Declaration1SDH002560A1001
GL Certificate1SDL000163R0061
Instructions and Manuals1SDH000457R0001
Instructions and Manuals (Part 2)ITSCE-RH0100.00
Instructions and Manuals (Part 3)1SDH000436R0502
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
UNSPSC39121100
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA054515R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 100 A
Rated voltage (EF003977) 1150 V
Overload release current setting (EF002336) 100 A
Adjustment range short-term delayed short-circuit release (EF007129) 1000 A
Adjustment range undelayed short-circuit release (EF007131) 1200 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Bolt connection
Device construction (EF008240) Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
With switched-off indicator (EF007006) No
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Front
Type of control element (EF006976) Toggle
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP20
