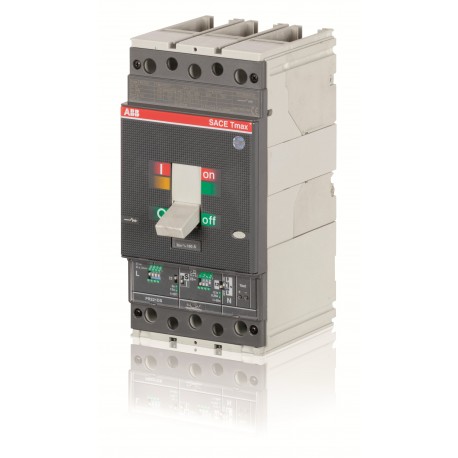

1SDA054513R1 ABB T4V250 PR221DS-LS/I In100 3p FFC 1150VAC
1SDA054513R1
054513
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
T4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA054513R1 ABB T4V250 PR221DS-LS/I In100 3p FFC 1150VAC is a molded case circuit breaker engineered to interrupt high-voltage electrical faults in specialized industrial circuits. Technicians install these compact breakers in demanding electrical distribution systems to ensure dependable overcurrent protection. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 19f8690d-57fc-4fb8-9219-e726f96a70e4 China
- Simplified SCIP: ed8559b8-767e-48c2-8543-b2095c0767c4 Sweden
- Environmental Information: 9AKK10103A1057
- EAN: 8015644556150
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85352100
- Product Net Width: 105 mm
- Product Net Height: 205 mm
- Product Net Depth / Length: 103.5 mm
- Product Net Weight: 3.5 kg
- Package Level 1 Units: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 19f8690d-57fc-4fb8-9219-e726f96a70e4 China |
| Simplified SCIP | ed8559b8-767e-48c2-8543-b2095c0767c4 Sweden |
| 958f56c2-9883-4c4c-910e-37510d8e518e Poland | |
| 7b471d1d-a119-4aec-99bb-c6245e14b688 Denmark | |
| ab26affa-7023-4230-903c-df7d283fb1d9 Czech Republic | |
| 555a1bf8-57f8-4049-8b34-032eb57e3945 Germany | |
| fb91fe80-d40e-4b17-92ab-cc15dbcaf18d Portugal | |
| fe3d1b58-1179-4c9a-ae1d-2c0fe1aa80cd Belgium | |
| 90a8f1b2-0822-4d58-a32f-ee39f138d255 Bulgaria | |
| 777efe61-36ad-4940-adea-2e58e50da28f Norway | |
| 19af7c43-9eb3-42e8-9f8c-4fa7886eb64c Poland | |
| bc33edd0-9ea1-4f55-ac3d-8ef2e5fd702f France | |
| a9fe1a1a-1093-4b12-a806-1764543e9146 Sweden | |
| 64b13c67-290c-4b76-aefd-f76a57d77287 Finland | |
| dc10c3e1-2517-43c9-9600-21f5e36e5f51 Germany | |
| 3d6dffe2-48f2-41b7-994e-a30e1c3bd6c3 Germany | |
| fe4f71c7-f4e1-4141-9852-614b402525ac Germany | |
| 65f56cb2-4ab2-4168-9660-cd72177b55f6 France | |
| 59c38a56-461c-4e5a-a462-80b0baa80035 Spain | |
| 78ee3cce-f2d9-44fc-8d80-8c74f5d27f8f Germany | |
| dab9e809-feb1-46ec-8298-731e79bfc42c Greece | |
| b8b1cfbf-df70-4a4b-91b3-a7fe2f4dd7f0 Hungary | |
| ddaca991-5277-442c-98ea-e6a4b75827d5 Netherlands | |
| 589c46a7-7e78-4f14-9f3b-17c936bf6814 Poland | |
| Environmental | |
| Environmental Information | 9AKK10103A1057 |
| 9AKK108467A6707 | |
| Ordering | |
| EAN | 8015644556150 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85352100 |
| Dimensions | |
| Product Net Width | 105 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 3.5 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 248 mm |
| Package Level 1 Height | 240 mm |
| Package Level 1 Depth / Length | 285 mm |
| Package Level 1 Gross Weight | 3.5 kg |
| Package Level 1 EAN | 8015644556150 |
| Additional Information | |
| Product Main Type | SACE Tmax T |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Suitable For | T4 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Version | F |
| Technical | |
| Electrical Durability | 8000 cycle |
| 120 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 240 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | at Rated Operating Conditions per Pole 1.7 W |
| Rated Current (In) | 100 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1150 V |
| Rated Operational Voltage | 1150 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (1000 V AC) 12 kA |
| (1150 V AC) 6 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (1000 V AC) 20 kA |
| (1150 V AC) 12 kA | |
| Rated Uninterrupted Current (Iu) | 250 A |
| Release | PR221DS-LS/I |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | T4 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Front for Copper Cables | |
| Test Voltage Max (Utest) | 3500 V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC210300D0201 |
| Declaration of Conformity - CE | 9AKK106713A5540 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| GL Certificate | 1SDL000163R0061 |
| Instructions and Manuals | 1SDH000457R0001 |
| Instructions and Manuals (Part 2) | ITSCE-RH0100001 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| UNSPSC | 39121100 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
